The 305M Cat6 Cable from TLD Electronic, a China Cat6 cable manufacturer and factory, supports data rates up to 10 Gbps over shorter distances (up to 55 meters) and 1 Gbps over 100 meters, with a tested frequency of 250MHz — significantly outperforming Cat5e and fully meeting the demanding requirements of enterprise-grade applications. It made with high-purity solid bare copper conductors and a durable PVC jacket, the cable ensures consistent signal integrity and superior crosstalk protection.
|
Parameter |
Details |
|
Product Name |
305M Cat6 Cable |
|
Place of Origin |
Guangdong, China |
|
Brand |
TLD / OEM (factory direct available) |
|
Category |
Cat6 |
|
Shielding Type |
U/UTP (Unshielded Twisted Pair) |
|
Length |
305 meters (1000 feet) per pull-box / reel |
|
Conductor Type |
Solid Bare Copper |
|
Wire Gauge |
23 AWG / 24 AWG |
|
Jacket Material |
PVC (LSZH optional) |
|
Number of Conductors |
4 pairs |
|
Operating Temperature |
-20℃ to 75℃ |
|
Packaging |
Spool / Pull-box / Reel |
|
Lead Time |
15–20 days for standard orders; samples available |
|
Certifications / Compliance |
UL / RoHS / REACH |
No connectors included — requires termination. This is bulk cable, not a pre-made patch cable. You must terminate it to patch panels, wall plates, or RJ45 plugs.
Use solid-conductor connectors. 23AWG solid copper is thicker than stranded wire. Standard connectors won't pierce the insulation properly or grip securely — use connectors designed for solid wire.
PVC vs LSZH selection. PVC is cost-effective for home/general office; LSZH (Low Smoke Zero Halogen) is flame-retardant with low smoke and no toxic gas — required for schools, hospitals, data centers, and other crowded or ventilation-limited spaces.
Maximum channel length ≤ 100 meters. TIA standard specifies 100m total channel length (including patch cords at both ends). Permanent link portion should not exceed 90 meters.
Keep distance from power lines. Maintain at least 5–10cm separation from 220V power cables to avoid EMI interference.

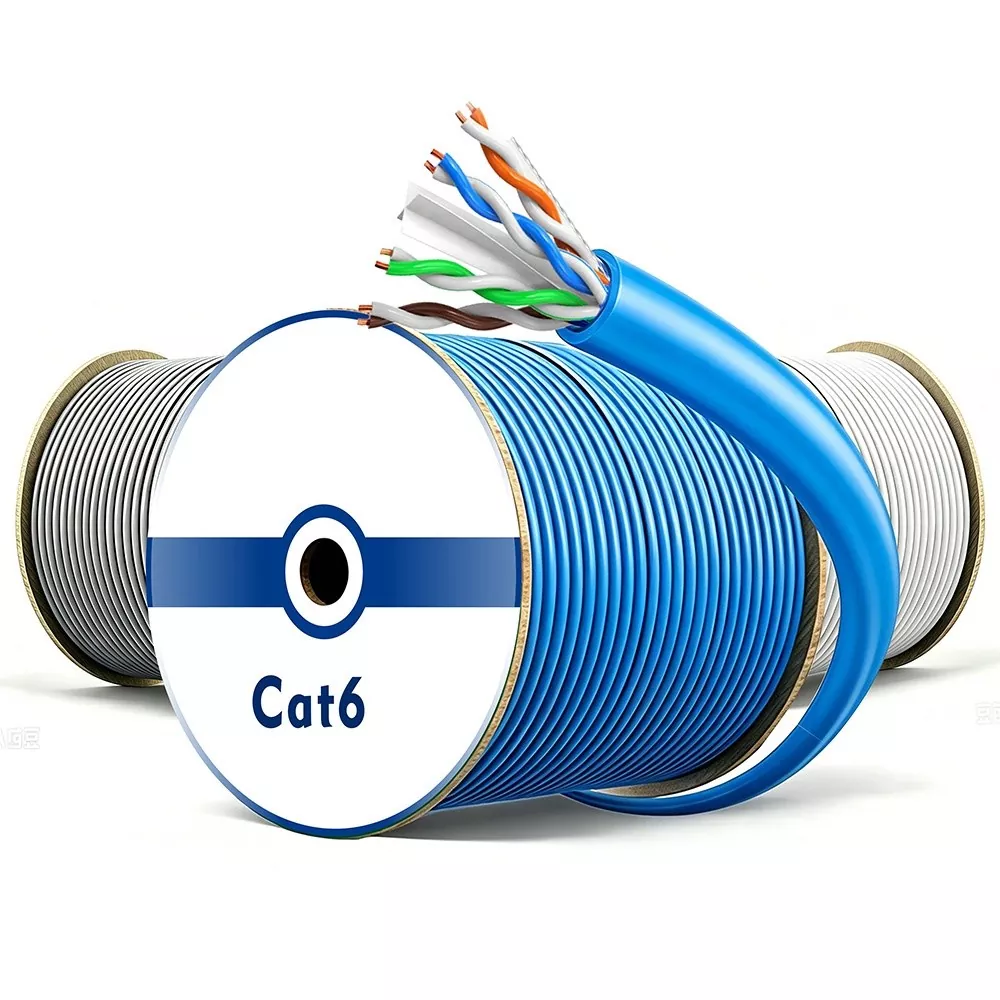

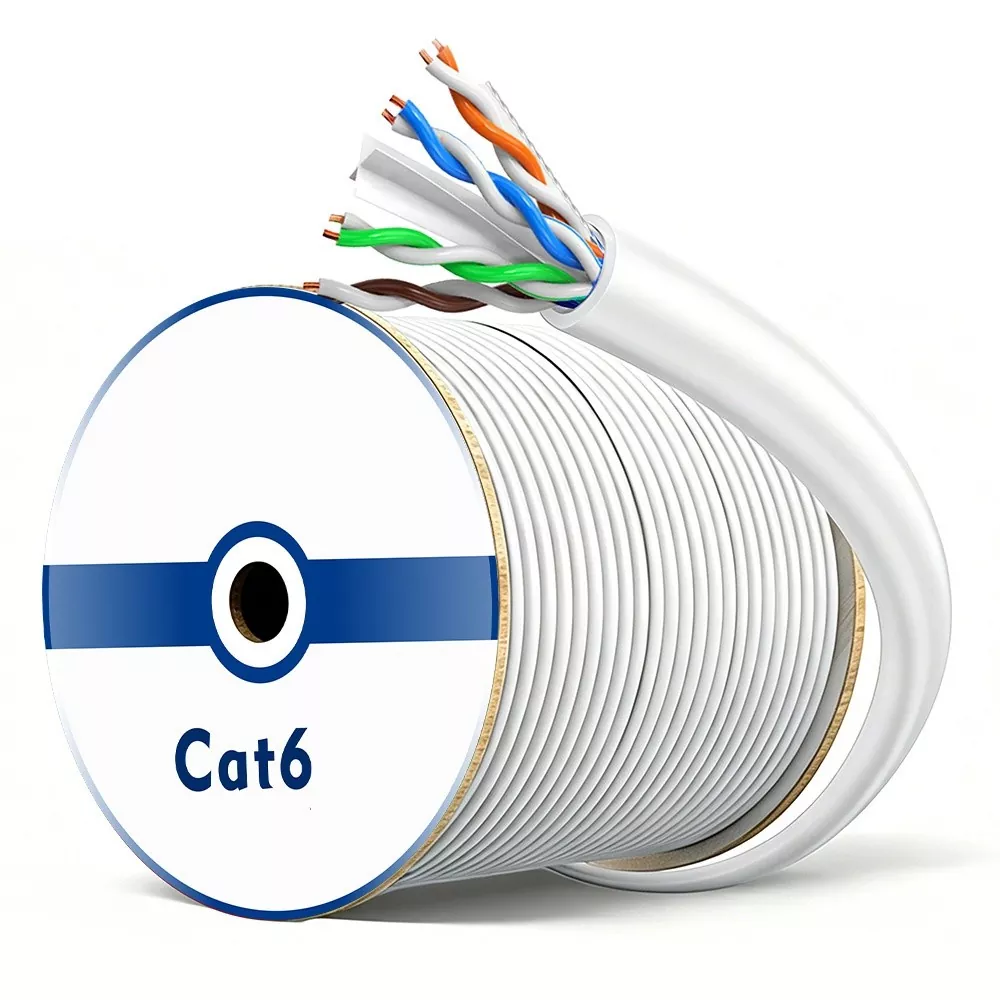

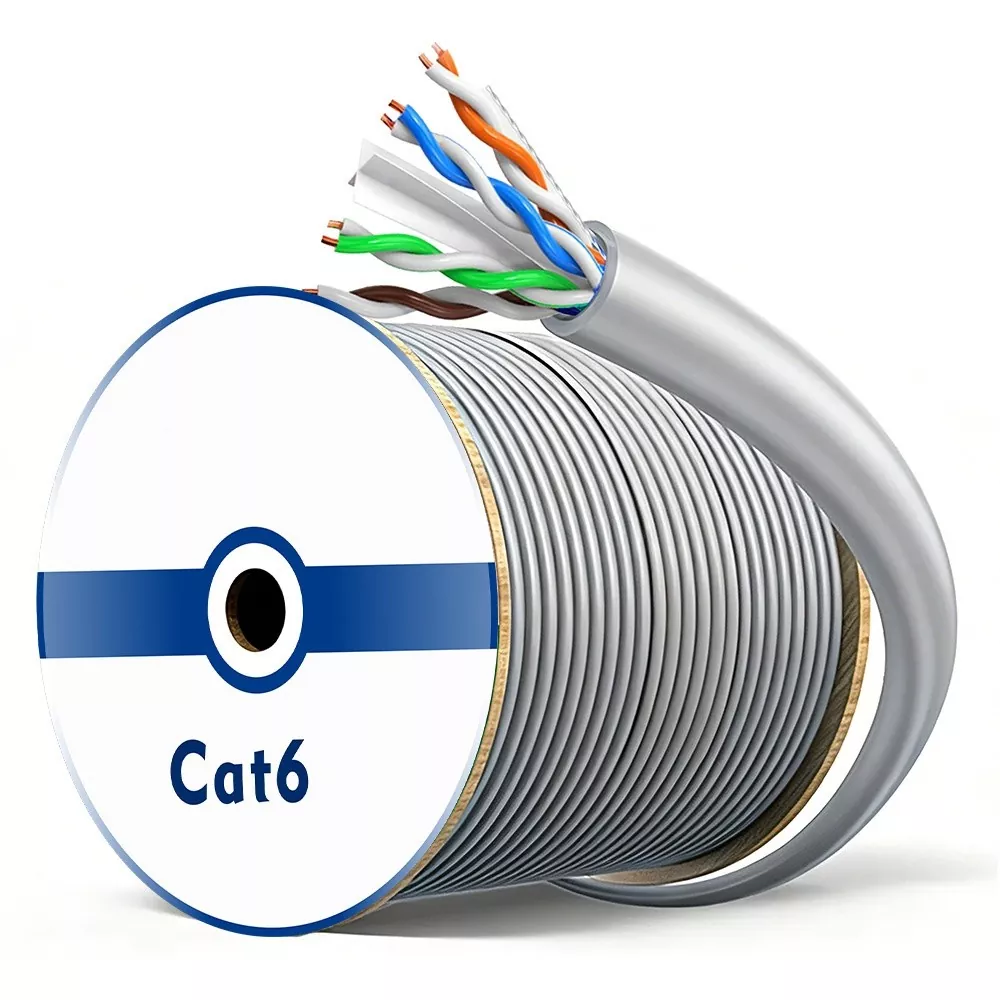

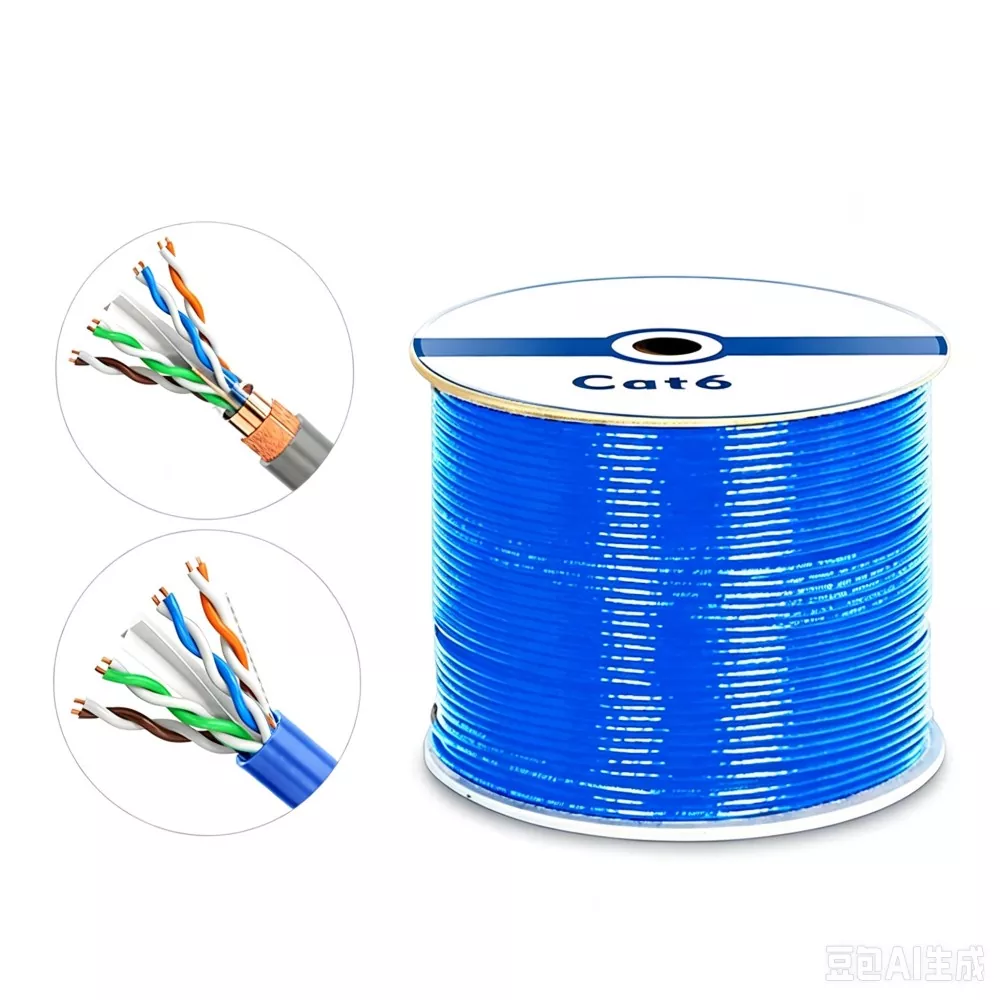

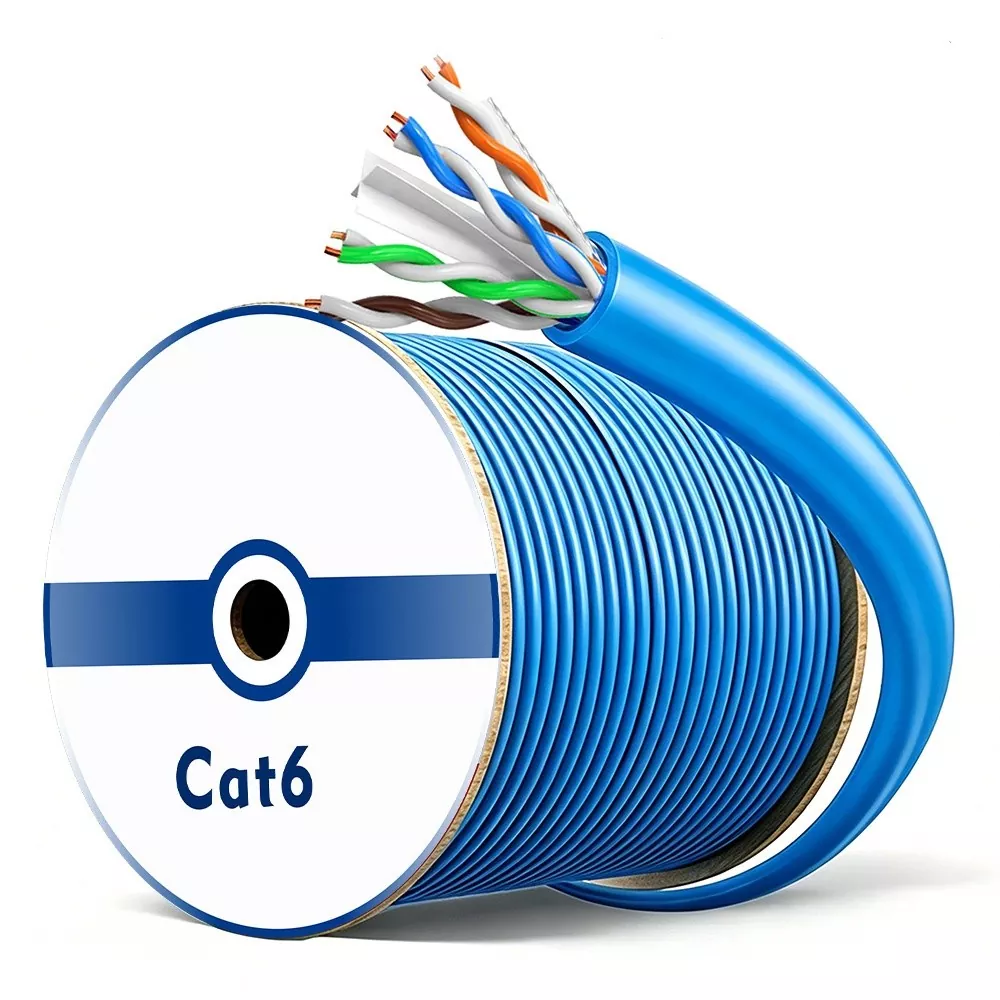

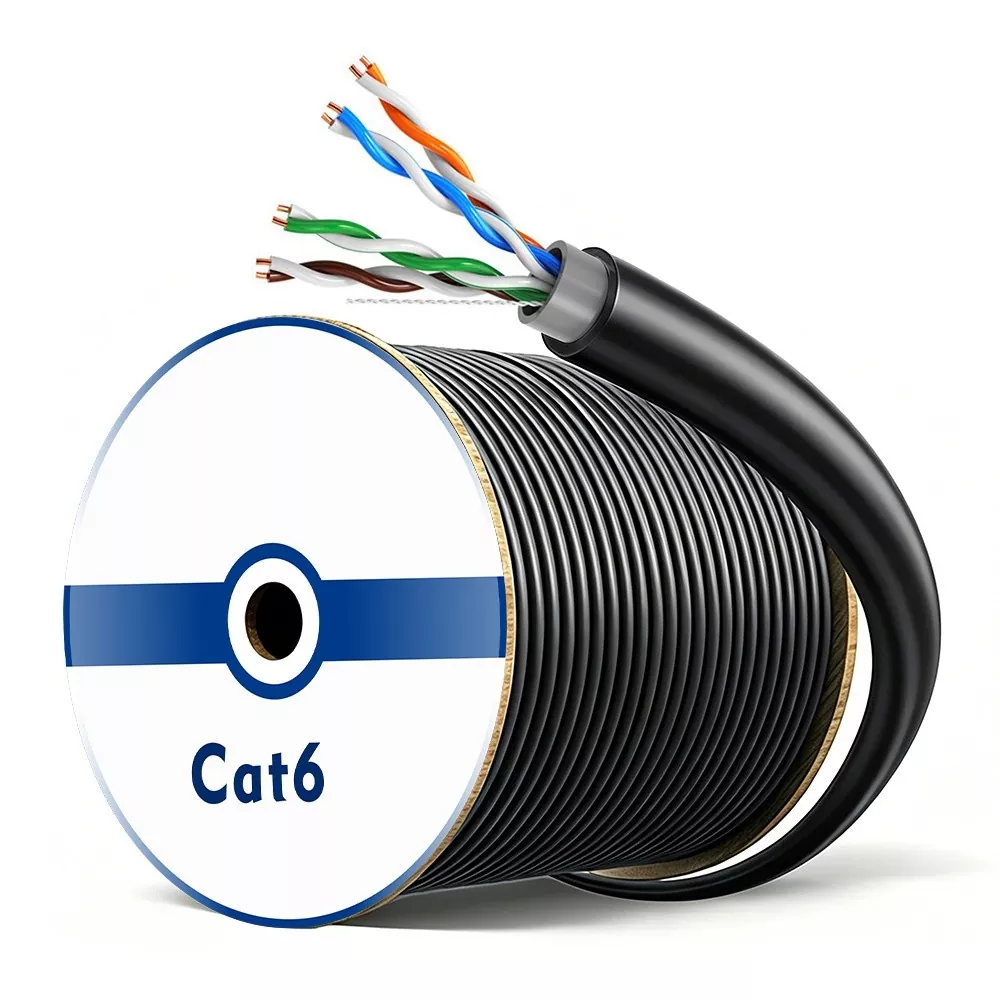

Each pull-box or reel provides 305 meters (1000 feet) of continuous cable, reducing the need for splicing and minimizing material waste across large-scale structured cabling projects.
The bulk cable supports custom-length cuts for each run, enabling installers and system integrators to carry out efficient, tidy batch cabling while minimizing material waste.
With a tested frequency of 250MHz, the cable significantly outperforms Cat5e and fully meets the demanding requirements of enterprise-grade applications, supporting 10 Gbps up to 55 meters and 1 Gbps up to 100 meters.

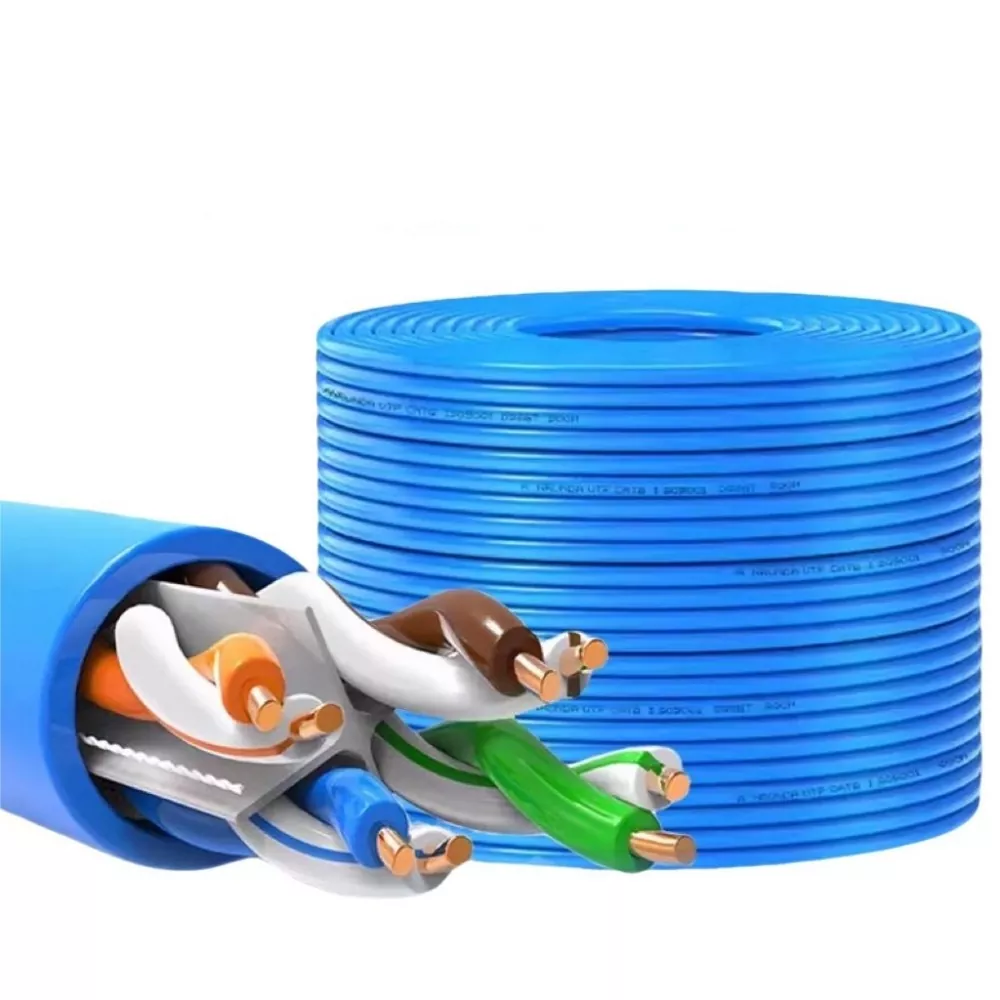

The cable construction includes a central cross separator that helps reduce crosstalk between pairs, ensuring consistent signal integrity and superior crosstalk protection.

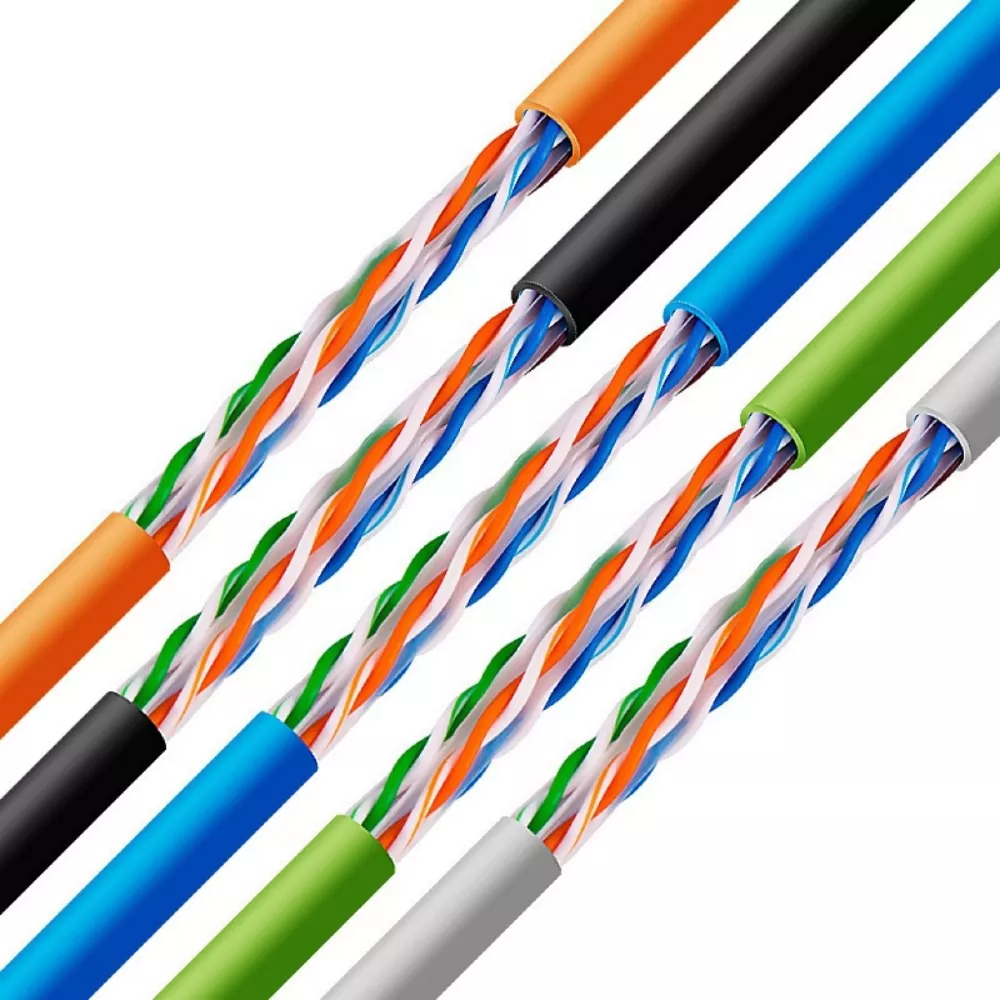

Available with PVC jacket for cost-effective home/general office use, or LSZH (Low Smoke Zero Halogen) jacket for flame-retardant, low-smoke, and non-toxic gas performance — required for schools, hospitals, data centers, and other crowded or ventilation-limited spaces.

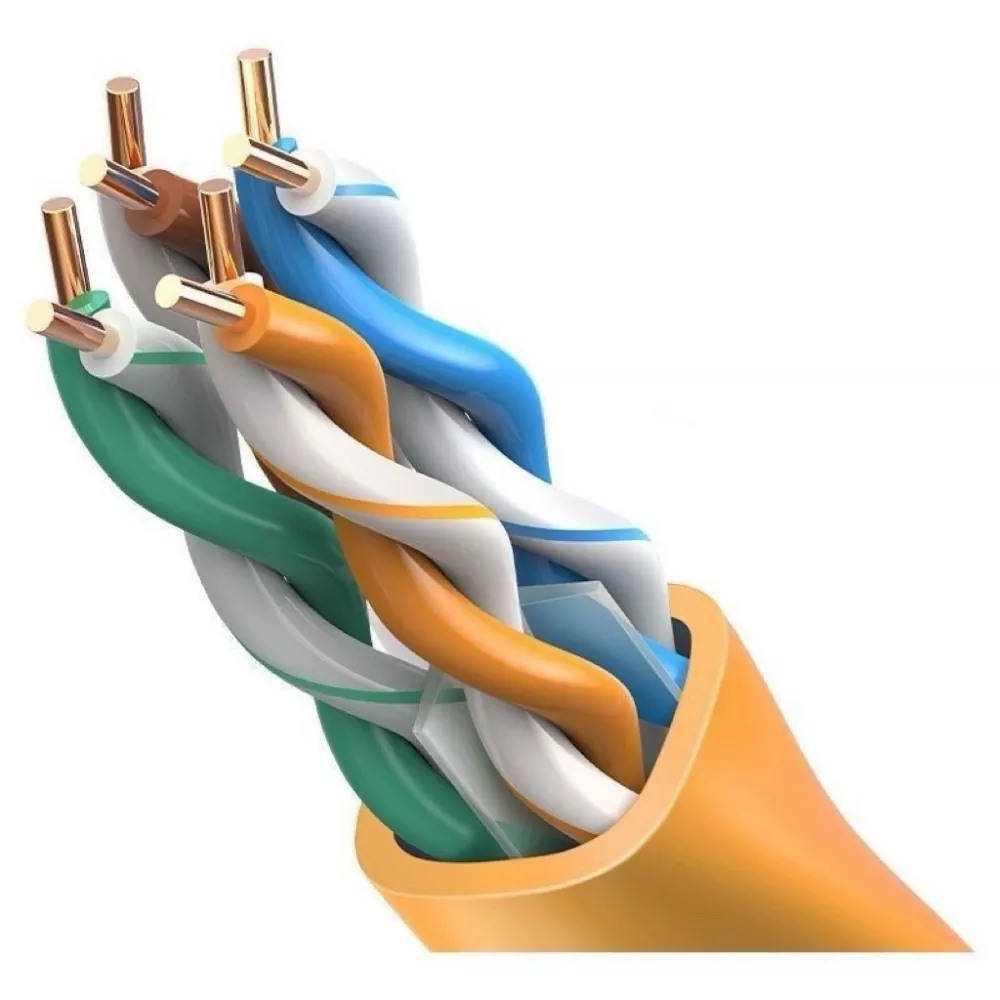

The cable uses 23 AWG / 24 AWG solid bare copper conductors, providing lower attenuation and better signal integrity over distance. Solid conductors are designed for permanent in-wall wiring.
The PVC outer jacket provides a flexible cable structure suited to desktop, entertainment, office, and commercial AV installations.
Custom-length cabling for workstations, conference rooms, and server rooms — delivering full 10 Gbps support for video conferencing, cloud collaboration, and large file transfers.
10 Gbps up to 55 meters, ideal for top-of-rack switching and server connections. 23 AWG solid copper ensures consistent signal quality and PoE+ capability.
Reliable, interference-resistant connectivity for EMR, PACS imaging, and patient monitoring systems. LSZH jacket options available for safety-critical environments.
High-bandwidth support for online learning platforms, digital resources, and administrative systems. CMR-rated jacket for safe in-wall and between-floor installations.
Reliable data and power delivery for IP cameras, access control, environmental sensors, and smart lighting. Flexible plenum and riser jacket options available.
High-speed connectivity for POS terminals, guest Wi-Fi, digital signage, and security cameras — with full PoE support for both data-heavy and power-sensitive applications.
The cable combines its specified conductor, shielding, connector, and jacket construction to support high-speed network applications.
The cable uses 23 AWG / 24 AWG solid bare copper conductors. The conductor configuration is selected according to the product specification and project requirements.
U/UTP (Unshielded Twisted Pair) construction with a central cross separator. The design helps reduce crosstalk between pairs and maintain consistent signal integrity.
The PVC outer jacket provides a flexible cable structure suited to desktop, entertainment, office, and commercial AV installations. LSZH jacket options are available for safety-critical environments.

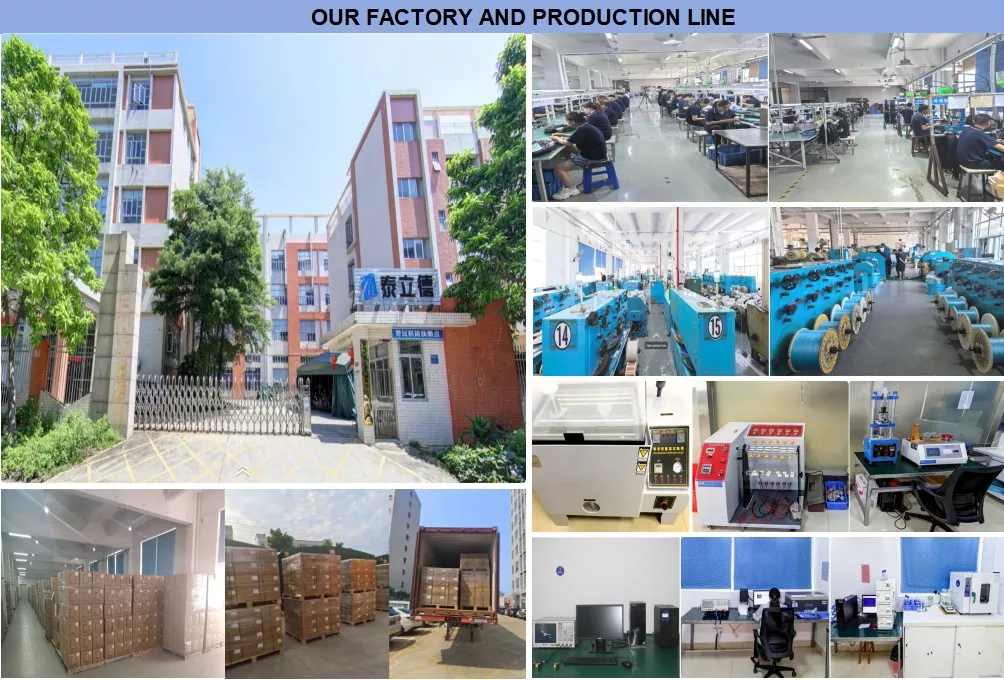

TLD applies quality-control procedures during Cat6 cable production and testing. Typical checks for this product can include:
100% continuity testing
High-frequency performance verification (NEXT, return loss, insertion loss)
Mechanical durability testing
Conductor and cable appearance inspection
Signal transmission verification
Product assembly inspection
Packaging inspection before shipment
All materials are sourced from certified suppliers, and our quality team monitors every production step. For project and wholesale orders, testing and packaging requirements can be confirmed according to the product configuration.
ZTE, Skyworth etc. relies on TLD for consistent supply of many kinds of cables for TV, Set-top box etc.
TLD is a China-based manufacturer and supplier of network, HDMI, USB, power, and audio-video cables, serving buyers who need standard connectivity products for wholesale, distribution, e-commerce, and project applications.
For this 305M Cat6 cable, TLD provides:
Standard 305M / 1000ft specification — Suitable for large-scale structured cabling projects.
Wholesale packaging options — Spool, pull-box, or reel packaging are available.
OEM support — TLD offers OEM supply for buyers developing products under their own brand.
Sample availability — Samples are available with a stated sample lead time.
Production lead time — Standard order lead time is 15–20 days.
Guangdong manufacturing — The product is manufactured and supplied from Guangdong, China.
A 305-meter spool of Category 6 cable for structured cabling. Supports 10 Gbps up to 55m and 1 Gbps up to 100m, with 250MHz frequency — outperforming Cat5e for enterprise networks.
Solid (23/24 AWG) is for permanent in-wall wiring — lower attenuation, better signal integrity over distance. Stranded is for flexible patch cords. Bulk cable uses solid conductors.
Permanent structured cabling — from patch panels to wall outlets in offices, classrooms, or residential spaces. Cut to custom lengths, reducing waste.
Jacket rating (CM/CMR/CMP/LSZH/outdoor), colors, conductor type (solid copper or CCA), wire gauge (23/24 AWG), packaging (pull-box/spool/reel), and custom lengths.
Every cable undergoes 100% continuity testing, high-frequency performance verification (NEXT, return loss, insertion loss), and mechanical durability testing. All materials are sourced from certified suppliers, and our quality team monitors every production step.
Yes, we provide free samples for qualified buyers. Please contact our sales team to arrange sample shipment — we are confident you will be impressed.
Yes. Available packaging options include spool, pull-box, and reel packaging for wholesale orders.
TLD supplies 305M Cat6 Cable for distributors, e-commerce sellers, AV suppliers, and project buyers.
For product samples, OEM requirements, customized packaging, or wholesale orders, contact TLD to confirm the required configuration and quotation.
