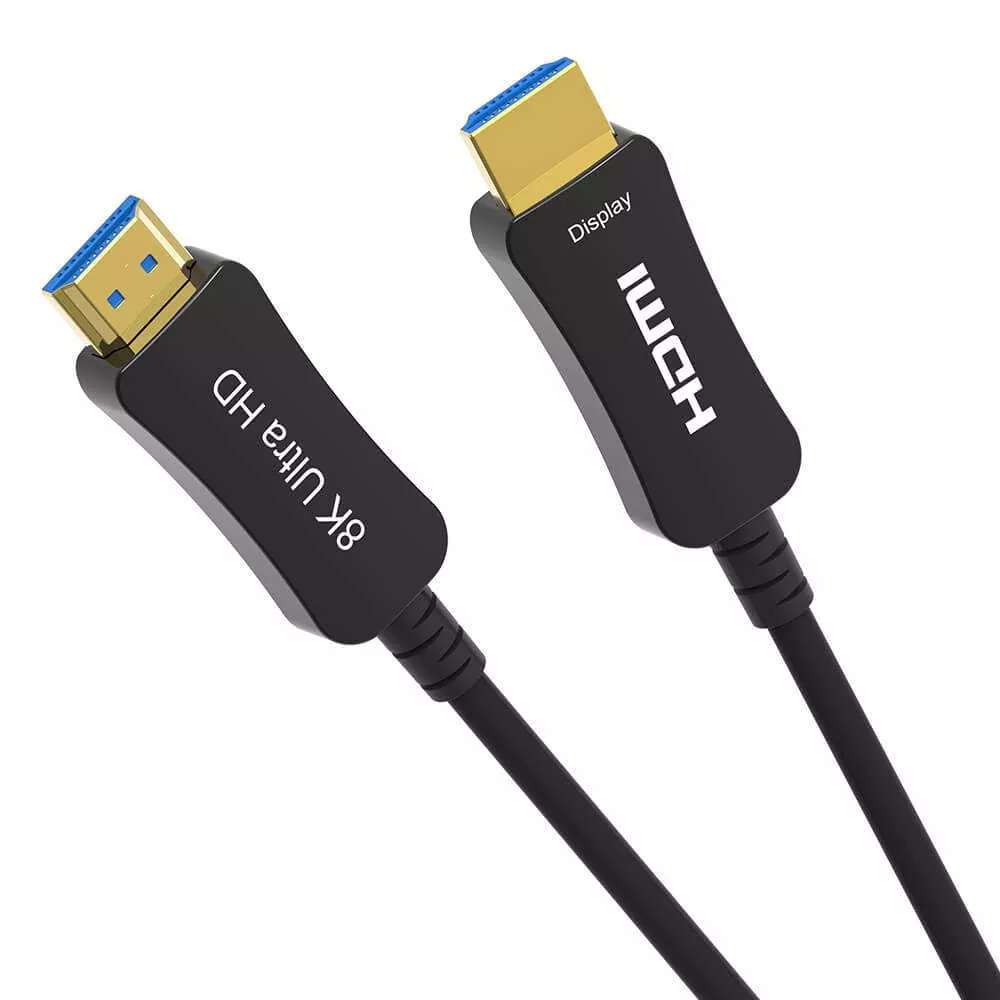

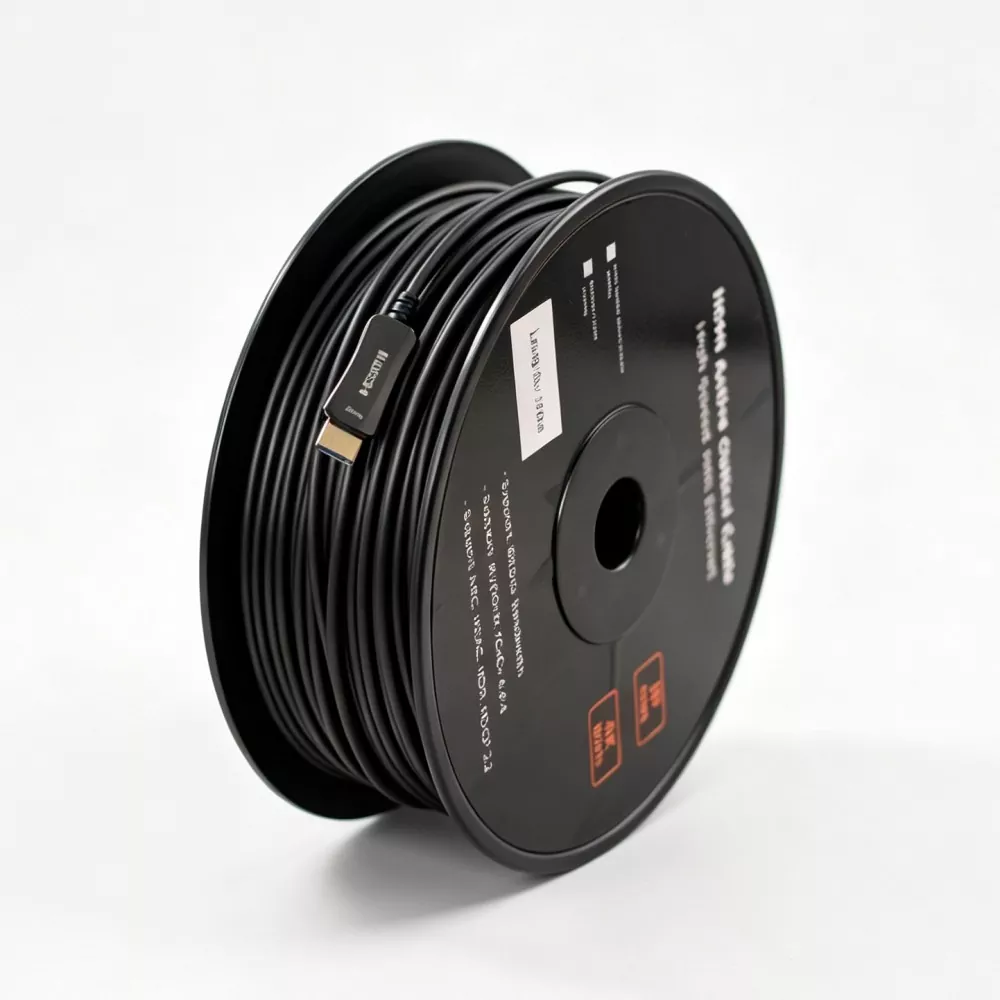

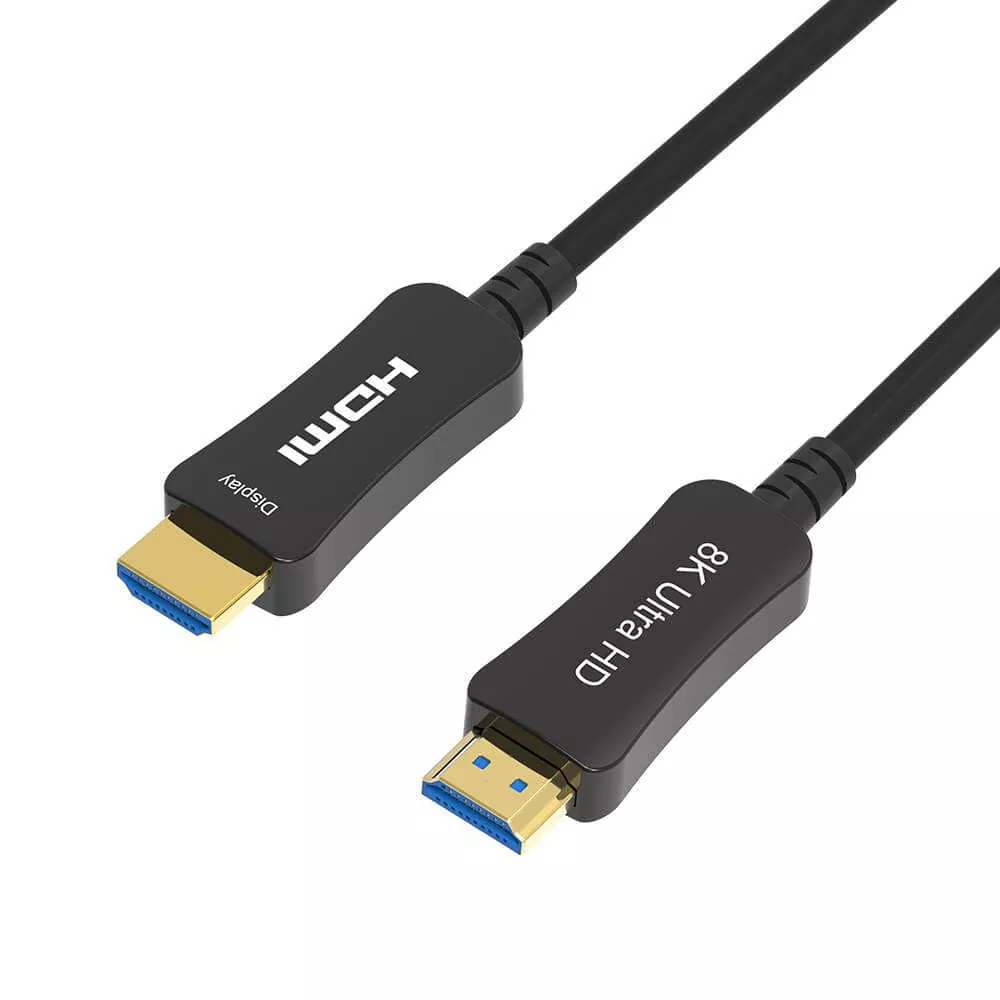

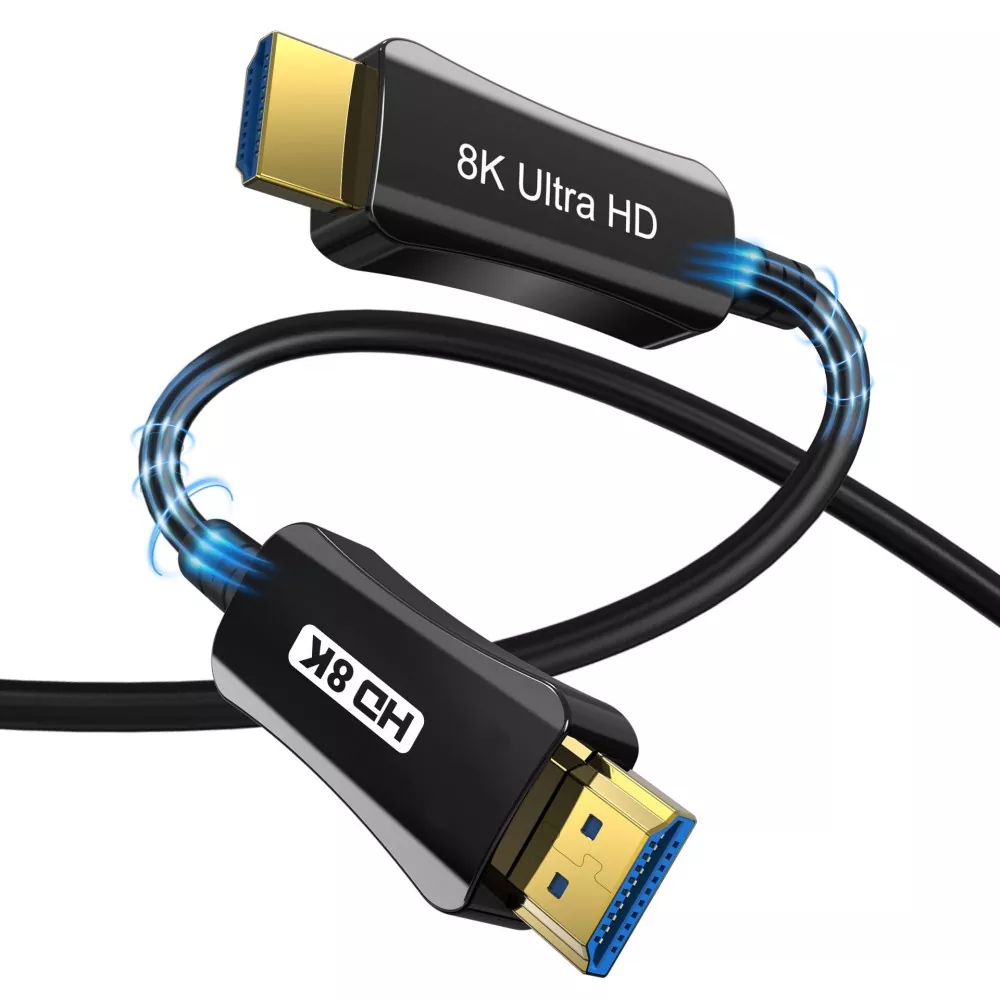

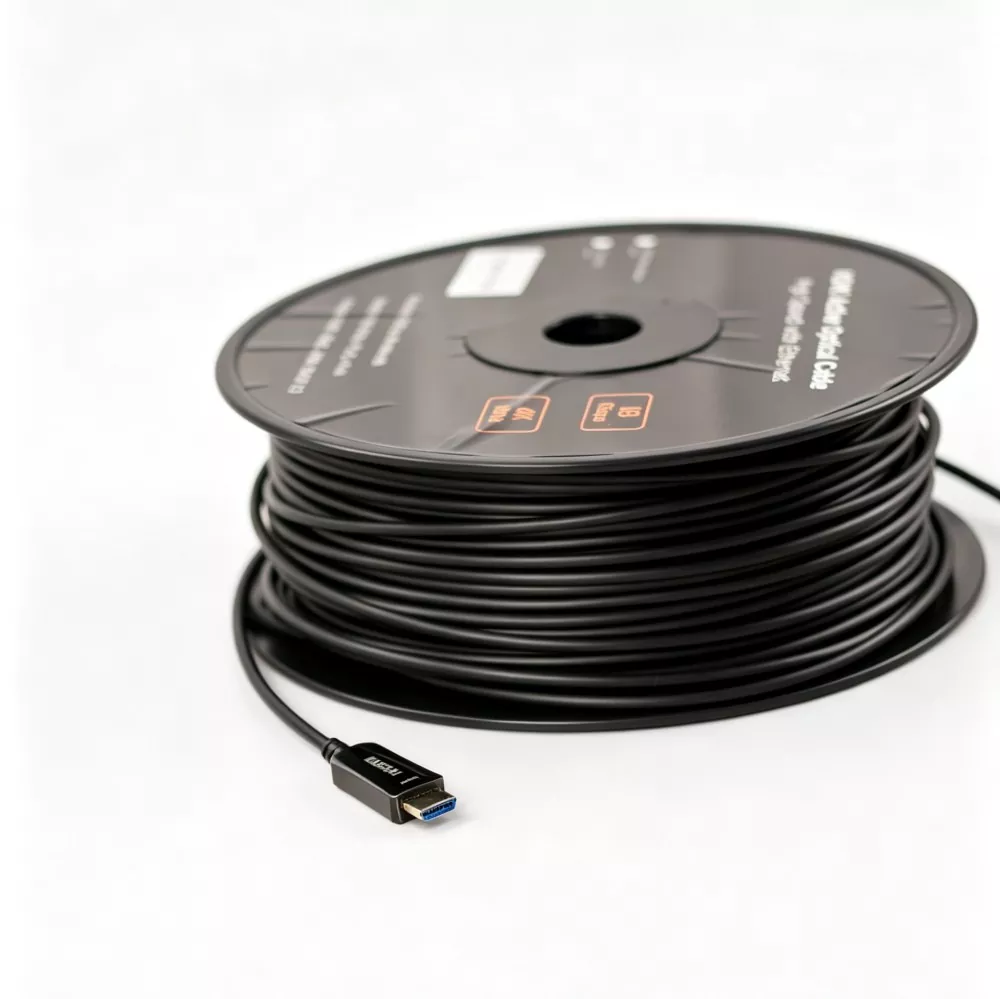

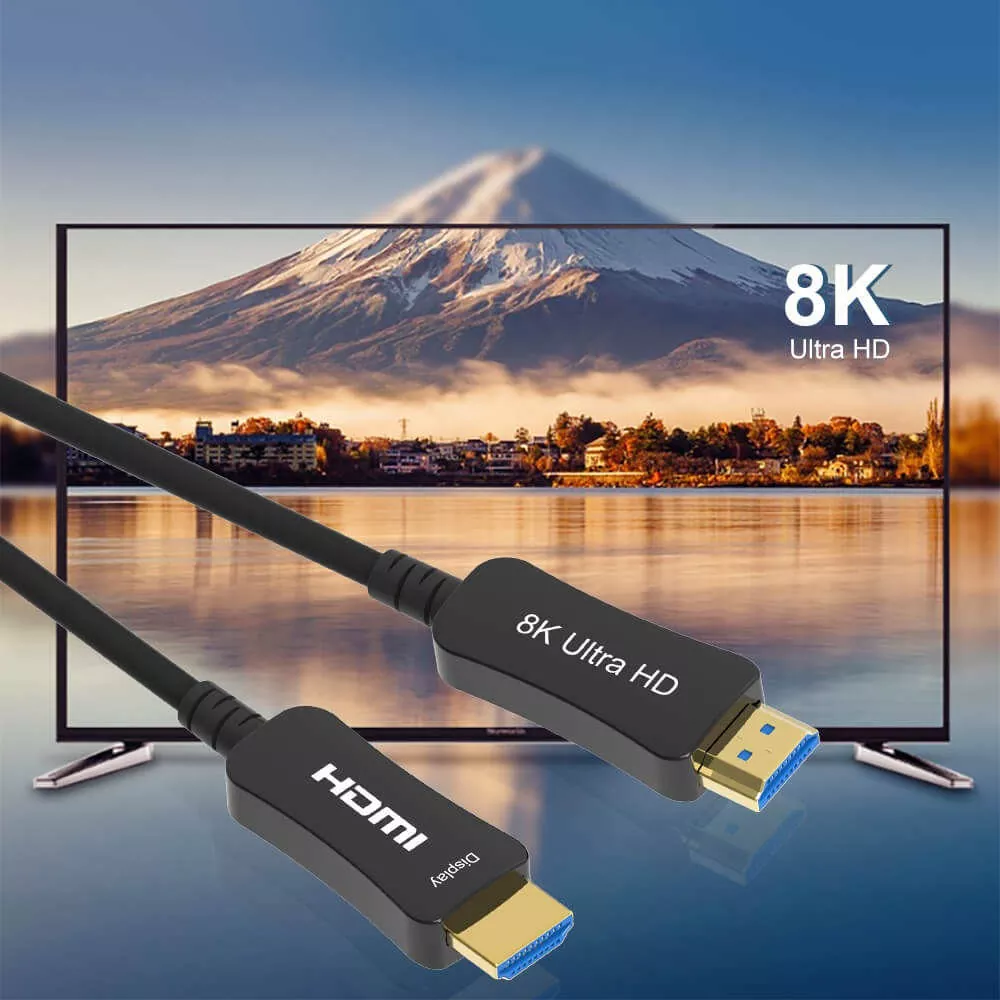

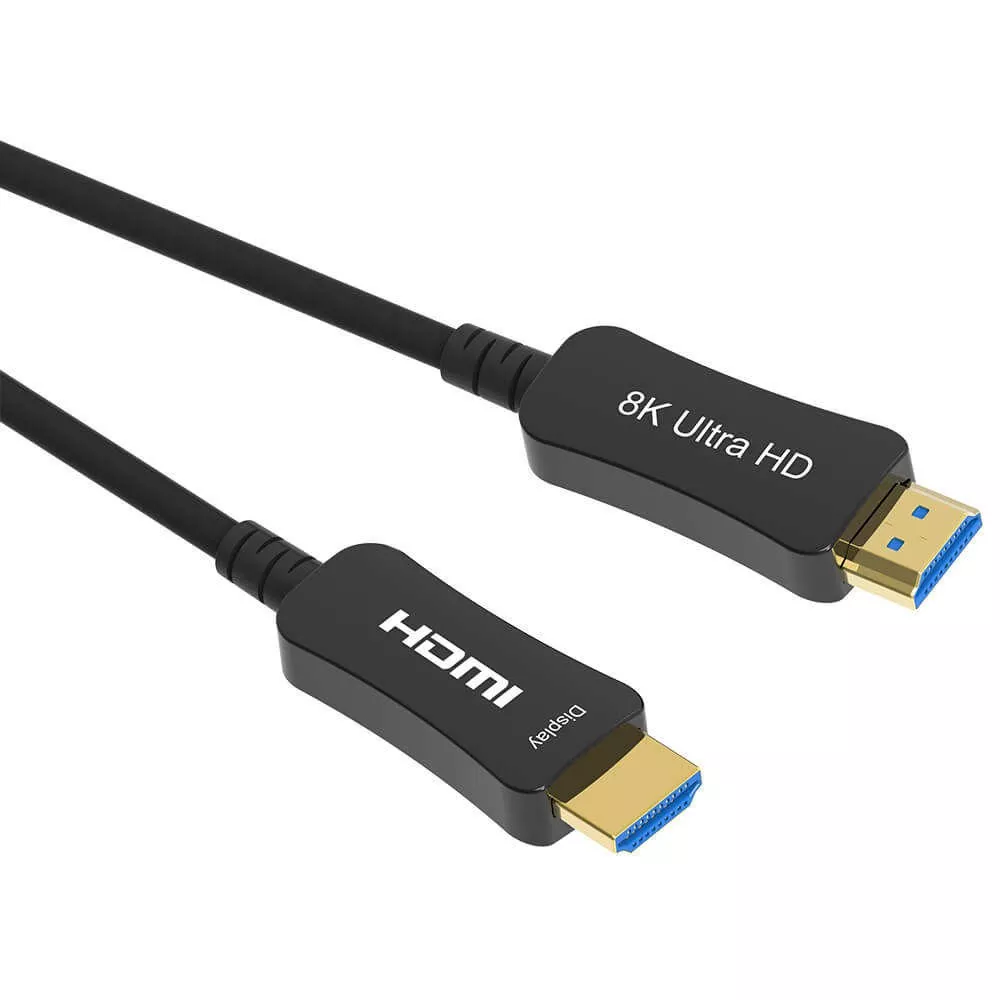

The Active Optical HDMI Type-A to Type-A cable from TLD Electronic is built for long-distance AV connections with standard HDMI Type-A male-to-male ports. It combines OM3 multimode fiber for data with copper conductors for power and HDCP/EDID handshake. HDMI 2.1 versions support 48Gbps, 8K@60Hz, 4K@120Hz, HDR, Dolby Vision, and VRR; HDMI 2.0 versions support 18Gbps, 4K@60Hz, deep color, and 3D. The fiber path resists EMI/RFI. Most lengths need no external power; 70–100m runs can use optional USB power. PVC/TPU jacket and metal/ABS housing are available.
|
Parameter |
Details |
|
Product Name |
Active Optical HDMI Type-A to Type-A |
|
Brand |
TLD / OEM |
|
Certifications |
RoHS, REACH,UL |
|
Place of Origin |
Guangdong, China |
|
Standard |
Active Optical HDMI 2.1 (HDMI 2.0 option) |
|
Connector Type |
HDMI Type-A Male to Type-A Male |
|
Supported Resolution |
Up to 8K@60Hz; 4K@120Hz (HDMI 2.1); 4K@60Hz (HDMI 2.0) |
|
Bandwidth |
Up to 48Gbps (HDMI 2.1); 18Gbps (HDMI 2.0) |
|
Cable Type |
Hybrid OM3 multimode fiber + copper conductors |
|
Connector Housing |
Metal / ABS shell |
|
Cable Jacket |
PVC / TPU |
|
Power |
No external power for most lengths; optional USB power for 70–100m |
|
HDCP |
HDCP 1.4 / 2.2 |
|
Length |
Up to 100m |
|
Packaging |
PE bag / OEM packaging |
|
Lead Time |
15–20 days for standard orders |
Up to 100m without signal loss or latency. Copper HDMI typically fails beyond 10–15m.
HDMI 2.1: 48Gbps, 8K@60Hz, 4K@120Hz, HDR, Dolby Vision, VRR.
HDMI 2.0: 18Gbps, 4K@60Hz, deep color, 3D, HDR.
OM3 multimode fiber handles high-speed data. Copper wires handle power and HDCP/EDID handshake signals.
Stable signal near Wi-Fi, escalators, security systems, cameras, lighting, and MRI/X-ray equipment.
Smaller and lighter than copper cables. Fits ceilings, trays, and narrow conduits. Armored option available.
Draws power from the HDMI source for standard lengths. Optional USB power for 70–100m runs or low-power sources.
Works with HDMI Type-A output devices: 4K/8K TVs, monitors, projectors, PS5, Xbox Series X, PCs, Blu-ray players, set-top boxes, and digital signage players. Supports HDCP 1.4/2.2.
Displays 30m from the source. AOC delivers 4K up to 100m. No boosters or extenders.
Malls, airports, hospitals. Resists EMI/RFI. Thin jacket fits narrow conduits. Armored option protects against rodents and impact.
Stadiums and studios. Stable 4K/8K feeds over 50–100m. Metal connectors support repeated plugging.
Operating rooms and diagnostic suites. Resists interference near MRI/X-ray equipment. Compact, easy-to-clean design. Stable long-distance transmission.
8K@60Hz or 4K@120Hz with HDR over 15–30m. No copper degradation. Flexible cable hides in walls and ceilings.
Every TLD AOC cable is 100% factory-tested for optical power, signal integrity, resolution, and durability. Optoelectronic components are sourced from certified suppliers. The quality team monitors each production step. After-sales support is available.

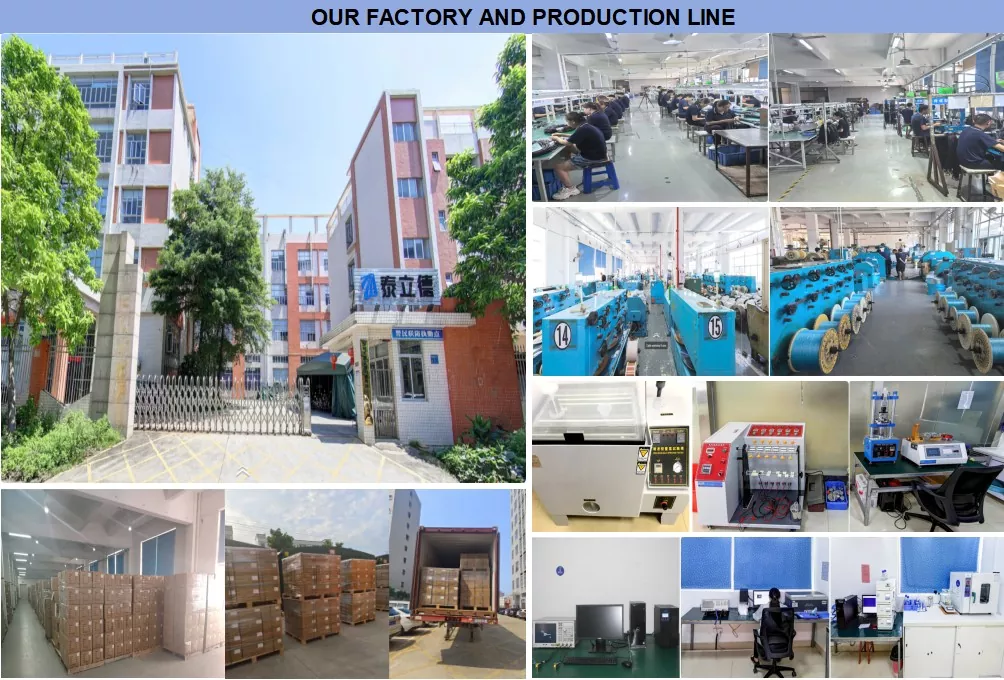

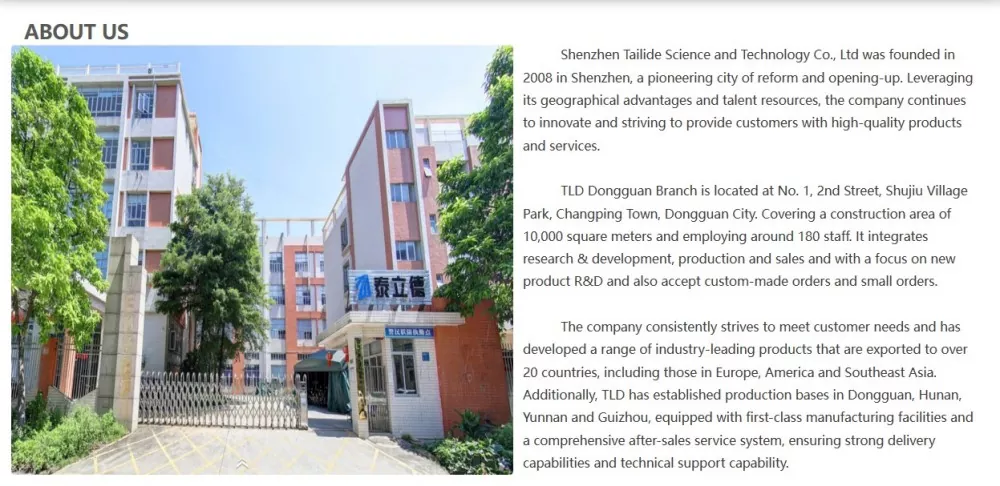

TLD was founded in 2008 in Shenzhen. Our Dongguan plant covers 10,000 m² and employs about 180 staff. We export to over 20 countries across Europe, the Americas, and Southeast Asia.
Product lines include network, HDMI, USB, power, and audio-video cables. We accept custom orders for length, color, packaging, shielding type, cable rating, and connector types. Small batch orders are welcome. OEM support is available.
Production bases: Dongguan, Hunan, Yunnan, and Guizhou.
Bulk order of power and HDMI cables for European retail chains. Custom lengths and fast turnaround.
A: It uses fiber optic technology to transmit HDMI signals. It converts electrical signals to light at the source connector and back to electrical signals at the display end. This allows up to 100m transmission, immunity to electromagnetic interference, and a thinner, lighter cable than copper.
A: HDMI 2.1: up to 8K@60Hz and 4K@120Hz, 48Gbps, HDR, Dolby Vision, VRR.
HDMI 2.0: 4K@60Hz, 18Gbps, deep color, 3D, HDR.
A: No external power is required for most standard lengths. It draws power from the HDMI source via copper conductors. For 70–100m runs or low-power sources, optional USB power input models are available.
A: Devices with standard HDMI Type-A output: 4K/8K TVs, monitors, projectors, PS5, Xbox Series X, PCs, Blu-ray players, set-top boxes, and digital signage players. Supports HDCP 1.4/2.2.
A: 100% optical power testing, full-length resolution validation, EMI immunity verification, and mechanical durability testing. Components come from certified suppliers. After-sales support is provided.

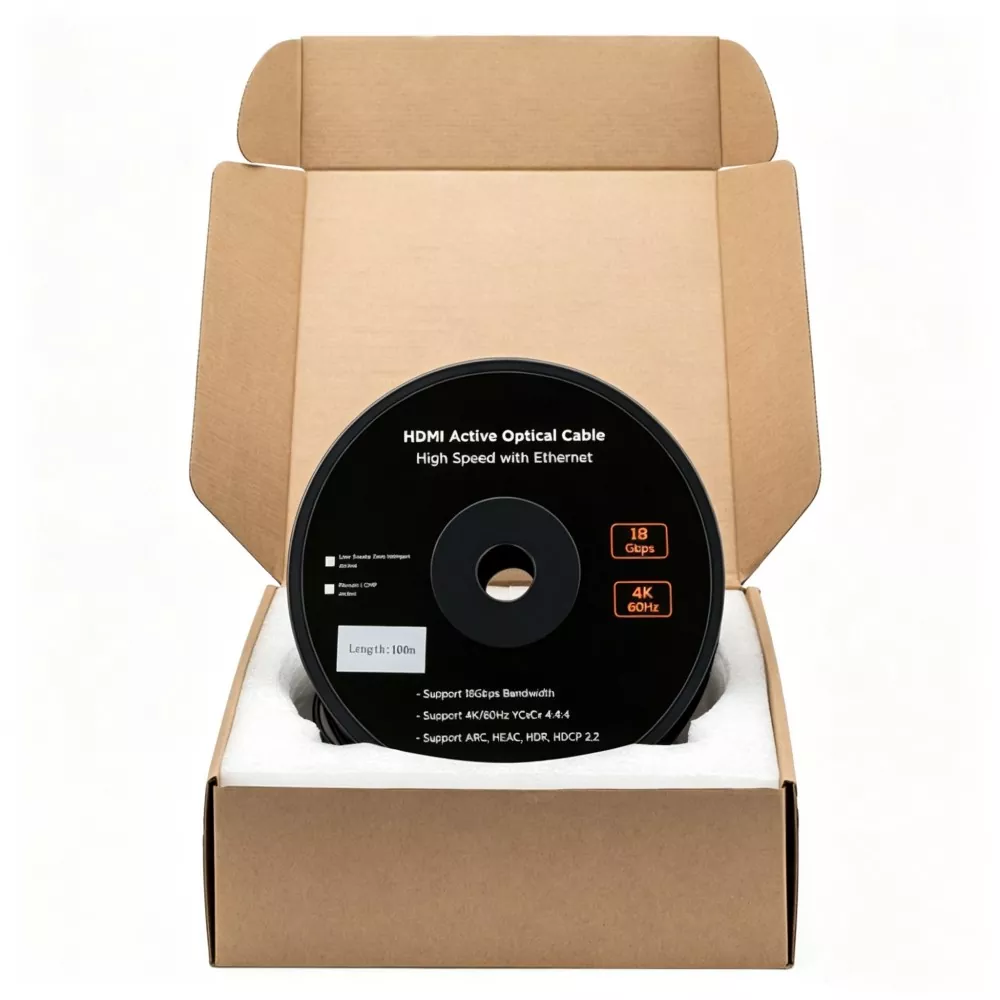

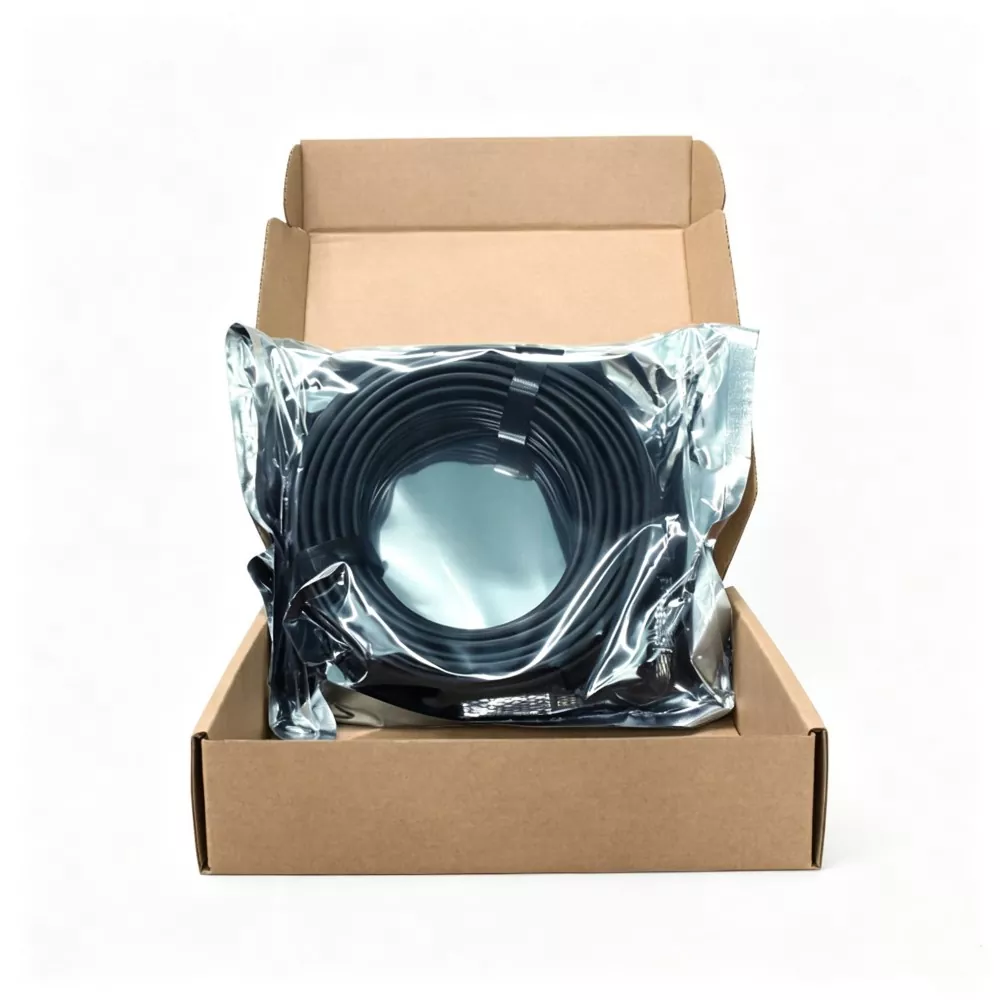

Standard packaging: individual PE bag.
OEM packaging available.
Shipping: sea, air, or express (UPS, DHL, FedEx, TNT, EMS).
