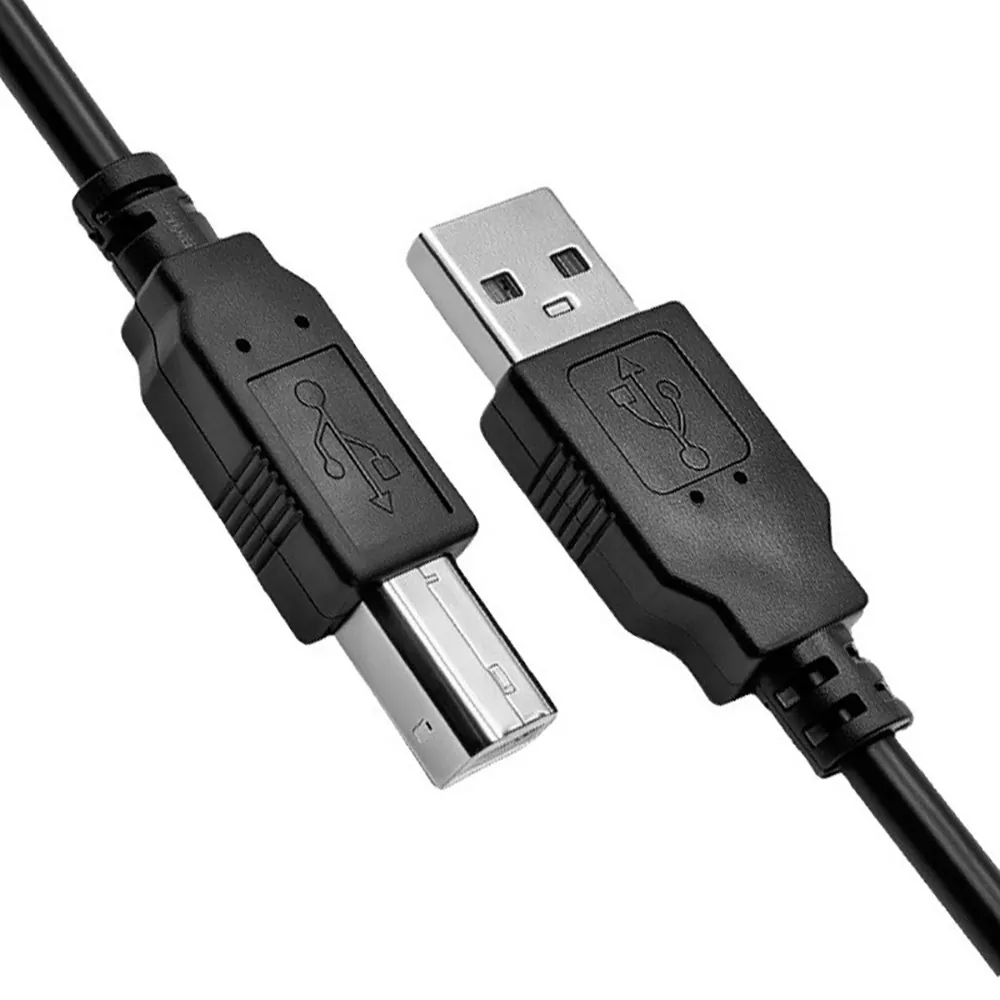

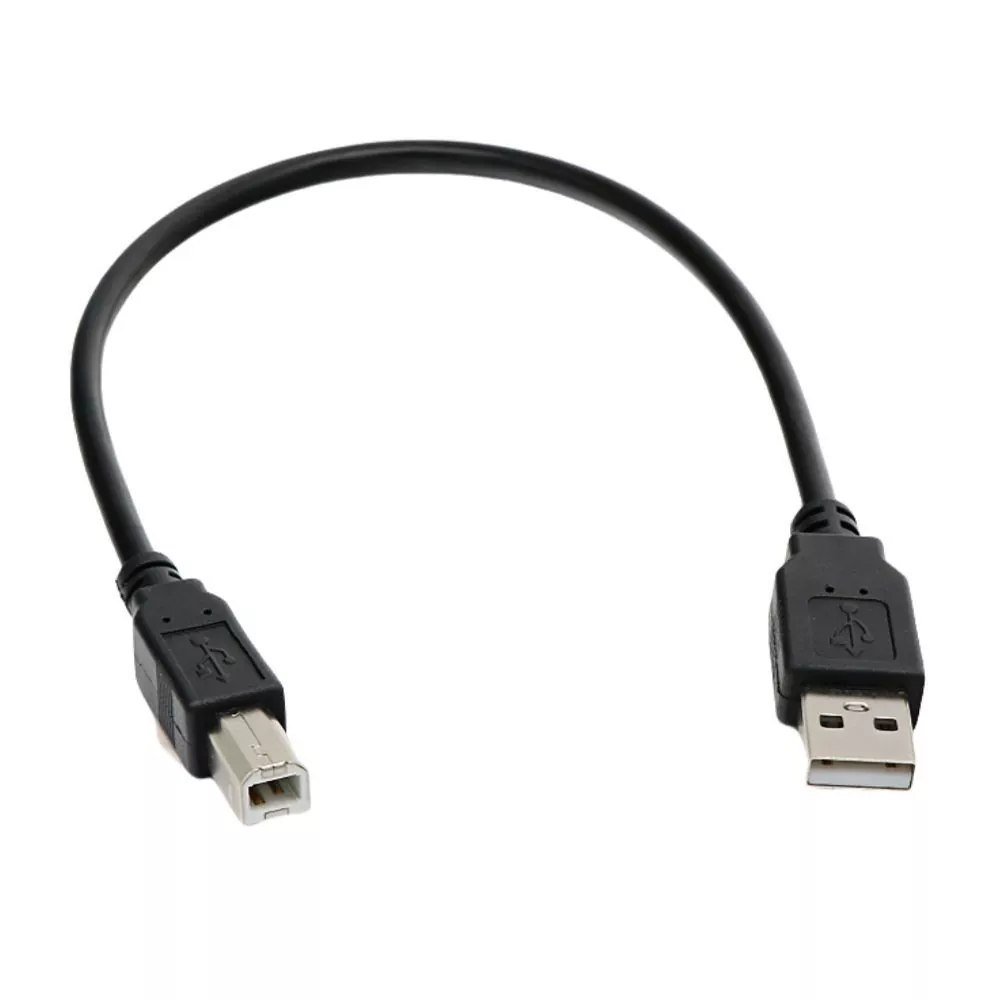

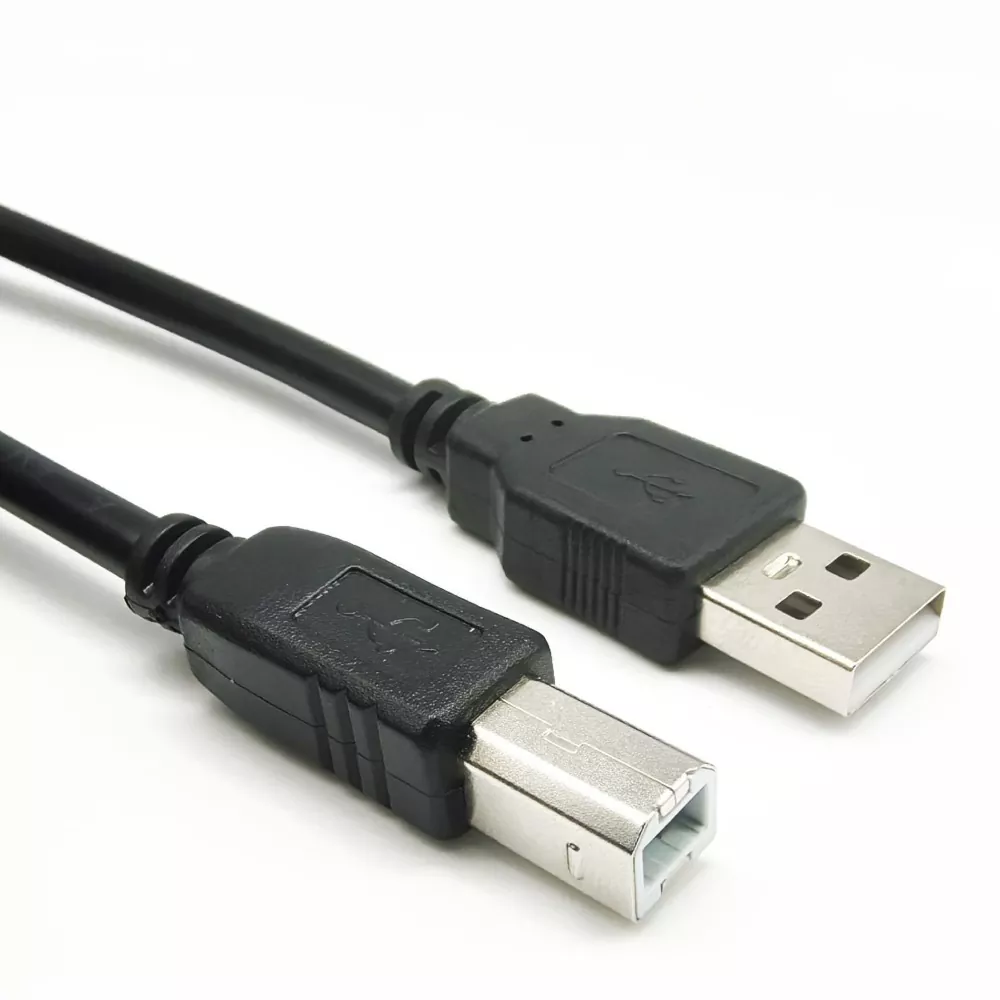

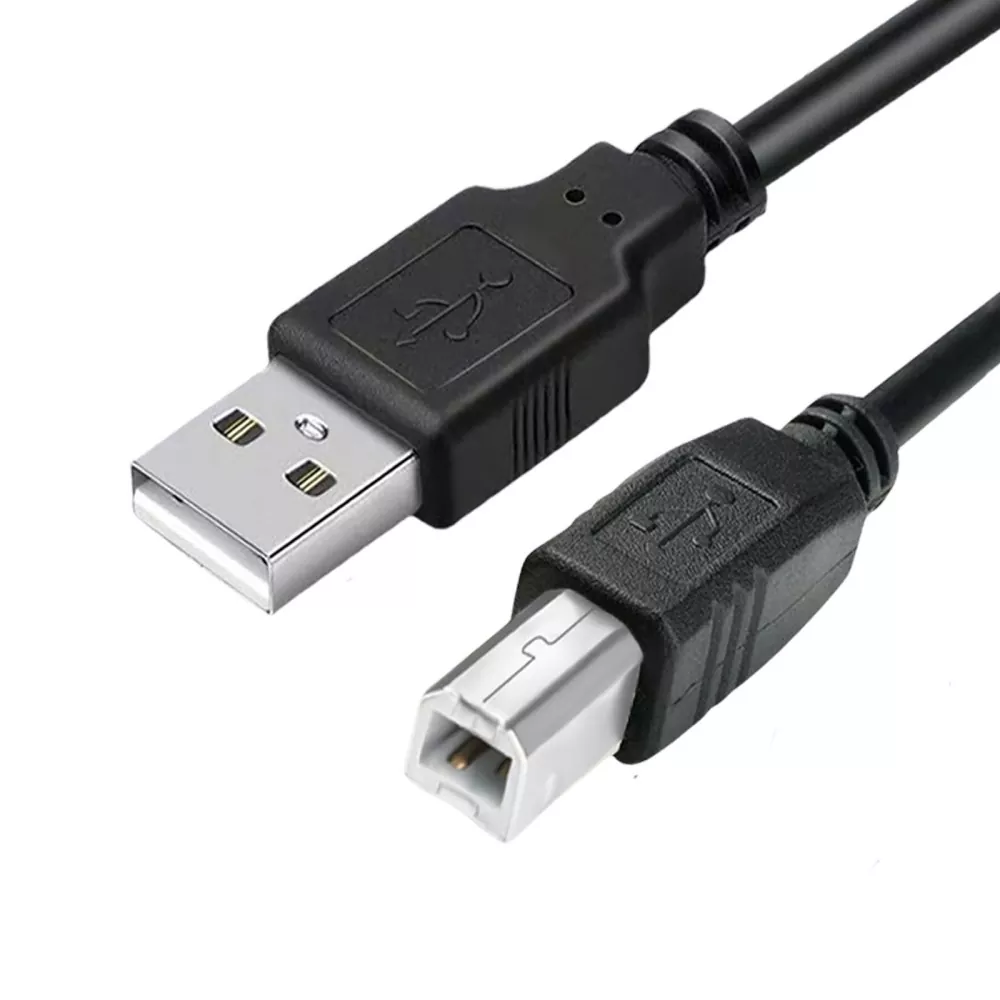

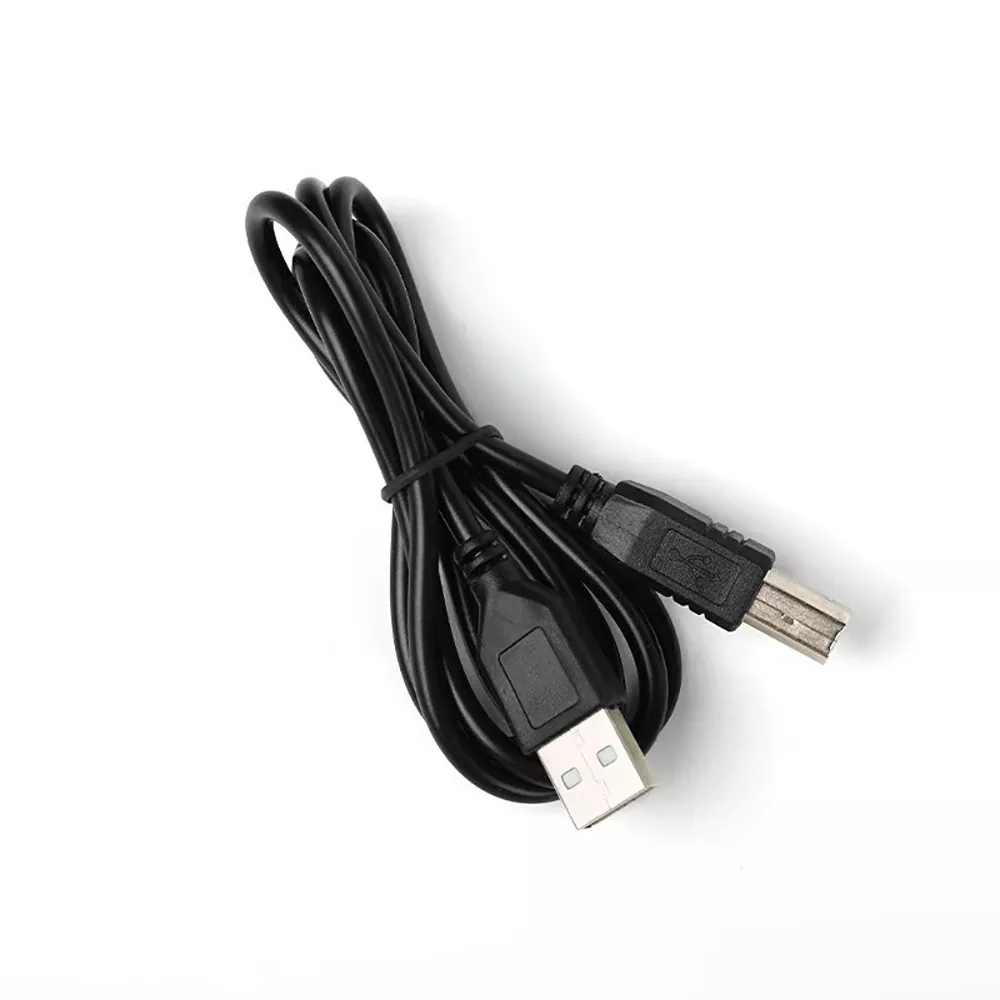

This USB 2.0 A Male to B Male printer cable from TLD, a China USB cable manufacturer and factory, features 28AWG tinned copper conductors, foil & braid shielding, nickel or gold-plated connectors and a PVC jacket, it ensures stable connections for office, studio, and storage applications. The ISO-9001-certified factory ensures RoHS/REACH/UL compliance, with an MOQ of 100 units, free samples, and OEM options available.
|
Parameter |
Details |
|
Product Name |
USB 2.0 A Male to B Male Printer Cable |
|
Connector Type |
USB Type-A Male to USB Type-B Male (standard square B connector) |
|
Length |
6 ft (1.8 m) standard; custom 3ft, 6ft, 10ft, 15ft |
|
Data Transfer Rate |
480 Mbps (USB 2.0 High-Speed) |
|
Power Conductors |
Tinned copper VBUS and ground; supports up to 2.4A |
|
Data Conductors |
Tinned copper D+/D- twisted pair |
|
Shielding |
Aluminium foil + 48-braid tinned copper mesh |
|
Jacket |
Flexible PVC; matte black or beige/off-white; custom colors available |
|
Connector Shell |
Nickel-plated brass with overmoulded strain relief |
|
Contact Plating |
Gold-flashed phosphor bronze |
|
Type-B Connector |
Standard square USB-B; designed for repeated plugging |
|
Compatibility |
Printers: HP, Canon, Epson, Brother, Xerox, Lexmark. Scanners: Fujitsu, Epson, Plustek. External HDD/SSD: WD, Seagate, LaCie, Toshiba. Audio interfaces: Focusrite, RME, PreSonus, Behringer. MIDI keyboards, CNC plotters, 3D printers, digital mixing consoles, lab instruments, medical monitors, POS receipt printers, barcode scanners |
|
Charging Support |
USB bus power up to 2.4A; no external adapter for many devices |
|
Backward Compatibility |
USB 1.1 and USB 1.0 |
|
Operating Temp |
-10°C to 65°C |
|
Packaging |
Polybag, zip-lock bag, blister card, or custom retail box |
|
Certifications |
RoHS, REACH, UL |
|
Origin |
Guangdong, China |
|
Brand |
TLD / Private Label (OEM welcome) |
|
MOQ |
100 units standard; flexible for custom projects |
|
Lead Time |
15–20 days bulk; free samples 5–7 days |
The square USB Type-B connector is used on most printers, scanners, external drives and audio interfaces. It is larger than Mini-B and Micro-B, easier to grip, and built for repeated plugging. This cable connects directly to Type-B ports without adapters.
USB 2.0 High-Speed 480Mbps handles common office and studio tasks:
Printing: 100MB design file to laser printer in under 2 seconds
Scanning: 600dpi A4 color scan (approx. 150MB) in under 3 seconds
External storage: 1GB document folder in under 25 seconds
Audio: 8 channels of 24-bit/96kHz audio without dropouts
For higher-speed external SSD video editing, see our USB 3.0 A-to-B cable.
Many printers, scanners and portable drives draw power from the USB bus. This cable uses 28AWG tinned copper VBUS and ground conductors to reduce voltage drop. Tested with:
WD Elements portable drive: spins up without external power
Portable DVD writer: reads and writes at full speed
USB-powered scanner: maintains consistent scan speed
Behringer XR series digital mixer: powers up and communicates
The Type-B connector has thicker walls and larger contact surfaces than smaller USB connectors. Added durability:
Overmoulded strain relief extends 25mm from connector body
Nickel-plated brass shell
Gold-flashed contacts
5,000+ insertion/withdrawal cycles by mechanical testing
Printers and scanners often sit near power strips, Wi-Fi routers and other EMI sources. Aluminium foil + 48-braid tinned copper mesh shielding reduces:
Corrupted print jobs
Scanner image artifacts
Drive disconnections during long transfers
Audio glitches in recording sessions
Connects a computer Type-A port to any device with a Type-B port:
Printers: HP LaserJet/OfficeJet/DeskJet, Canon imageRUNNER/PIXMA, Epson EcoTank/WorkForce, Brother MFC/HL, Xerox Phaser, Lexmark
Scanners: Fujitsu fi-series, Epson Perfection/Expression, Plustek OpticFilm, Brother ADS
External Storage: WD My Book/Elements, Seagate Backup Plus/Expansion, LaCie d2/Rugged, Toshiba Canvio
Audio: Focusrite Scarlett, RME Babyface, PreSonus StudioLive, Behringer U-Phoria, Universal Audio Apollo
Creative & Industrial: MIDI keyboards, CNC plotters, 3D printers, digital mixing consoles
Lab & Medical: Spectrophotometers, ECG monitors, blood analysers, data loggers
POS & Retail: Thermal receipt printers, barcode scanners, cash drawers
Works with USB 3.0 ports at USB 2.0 speed, and with USB 1.1 ports. Suitable for mixed-generation equipment environments.
Office Print Rooms Connect high-volume laser printers to workstations or print servers. Stable connection reduces reprints caused by communication errors.
Design & Creative Studios Link large-format scanners and plotters for architectural or graphic design workflows.
Data Backup Stations Connect external hard drives to desktop PCs for routine backups.
Audio Recording Studios Interface audio interfaces with computers. Stable power and data transfer for recording sessions.
Education & Training Labs Connect lab instruments, 3D printers and scanners to shared workstations. Durable connectors handle student use.
Medical Clinics Interface diagnostic equipment with reporting PCs for patient records.
Retail & Hospitality Connect POS receipt printers and barcode scanners. Easy to replace.
Home Office Connect printer, scanner and external drive with one cable type.
USB 2.0 is a mature standard. Stable performance across daily prints and scans depends on cable construction:
D+/D- Differential Pair Twisting Tight twist pitch (6–8 twists per inch) reduces crosstalk and maintains signal integrity at 480Mbps.
Shielding Continuity Foil + braid shielding is soldered directly to connector shells at both ends, not just crimped. This provides a low-impedance ground path and drains EMI to ground.
28 AWG Power Conductors 28AWG tinned copper VBUS and ground conductors provide approx. 0.06Ω per foot. Voltage drop stays under 0.2V at 2.4A.
USB-IF Compliance Meets USB Implementers Forum electrical and mechanical requirements for interoperability with certified devices.
100% Automated Testing Every cable undergoes:
Continuity (all 4 pins)
Short-circuit isolation
Hi-Pot insulation (300V DC, >10MΩ)
Resistance (VBUS and ground)
Functional handshake with USB host
Real-device validation (printer and external drive test)
TLD operates under ISO-9001:2015 certified quality management.
|
Quality Checkpoint |
Method |
Acceptance Criteria |
|
Incoming material QC |
Visual + gauge + resistance |
Conductor AWG, shield coverage, plating |
|
Inline soldering inspection |
Automated optical inspection (AOI) |
100% defect-free joints |
|
100% electrical test |
Automated tester (ATE) |
Continuity, isolation, Hi-Pot |
|
Resistance test |
Micro-ohmmeter (shift sample) |
VBUS < 0.15Ω, GND < 0.15Ω |
|
Insertion/withdrawal force |
Force gauge (shift sample) |
0.5–2.0 kgf (USB-IF spec) |
|
Bend endurance |
Flex tester (shift sample) |
8,000 cycles @ 180° – no electrical failure |
|
Real-device validation |
Daily print, scan, copy test |
Stable connection, error-free transmission |
|
Visual inspection |
100% units |
No scratches, misalignment |
Germany — Laboratory Customer “Our lab uses hundreds of these cables to connect diagnostic equipment to reporting PCs. We can’t afford data corruption on patient files. TLD has delivered consistently for 3 years.”
Founded in 2008, TLD is a 12,000 m² ISO-9001 certified manufacturer, supplier and exporter with over 200 employees and 15 in-house R&D engineers. Our Dongguan facility runs automated production lines for cutting, stripping, soldering, overmoulding and testing. We supply global brands including ZTE, Skyworth and Hisense, plus wholesale distributors, office supply companies and e-commerce sellers in 55 countries.
Factory direct pricing Competitive rates for wholesale and bulk orders.
Customization Custom lengths (3ft, 6ft, 10ft, 15ft), colors (black, beige, white, blue), connector labelling and retail packaging.
Brand support Private labelling, custom blister cards and retail boxes.
Free samples Free samples for qualified buyers within 5–7 days.
In stock Standard models held in inventory for rapid dispatch.
On-time delivery 98.5% on-time delivery record over 24 months.
Service Dedicated account managers, technical support and tailored solutions.
