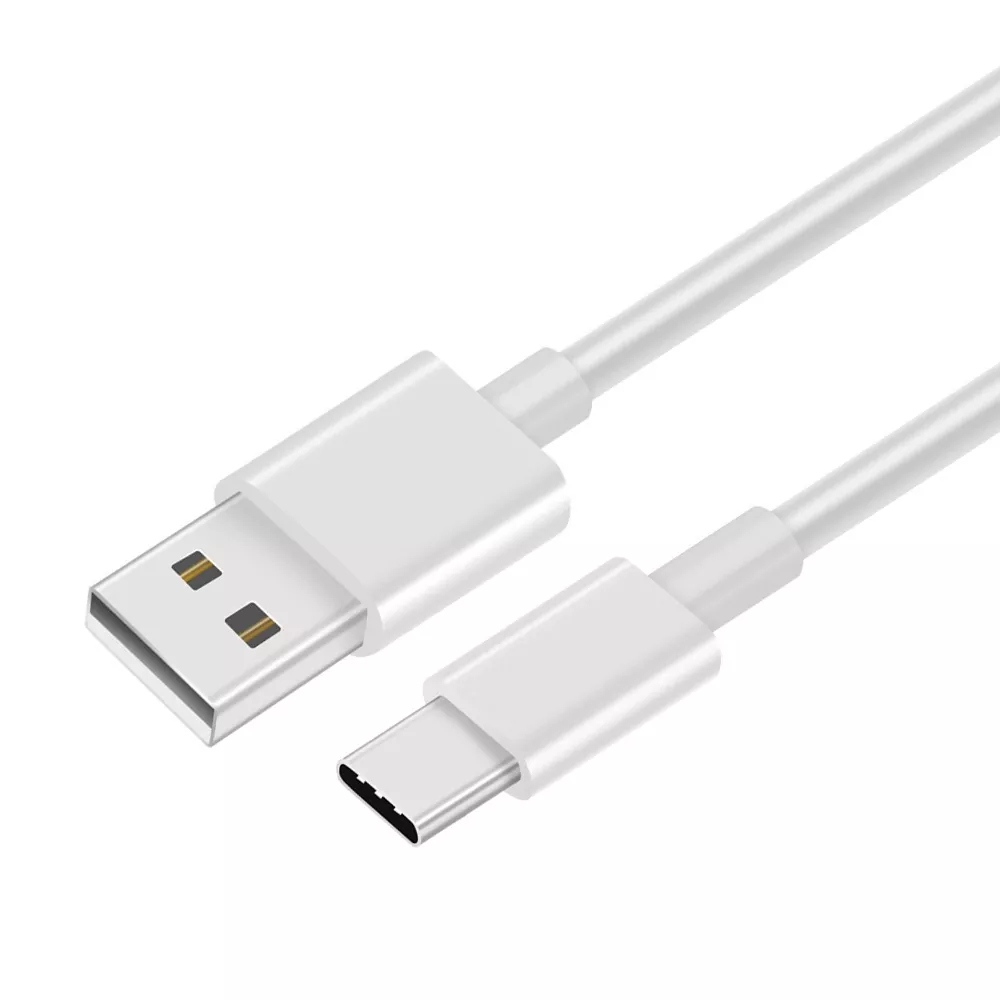

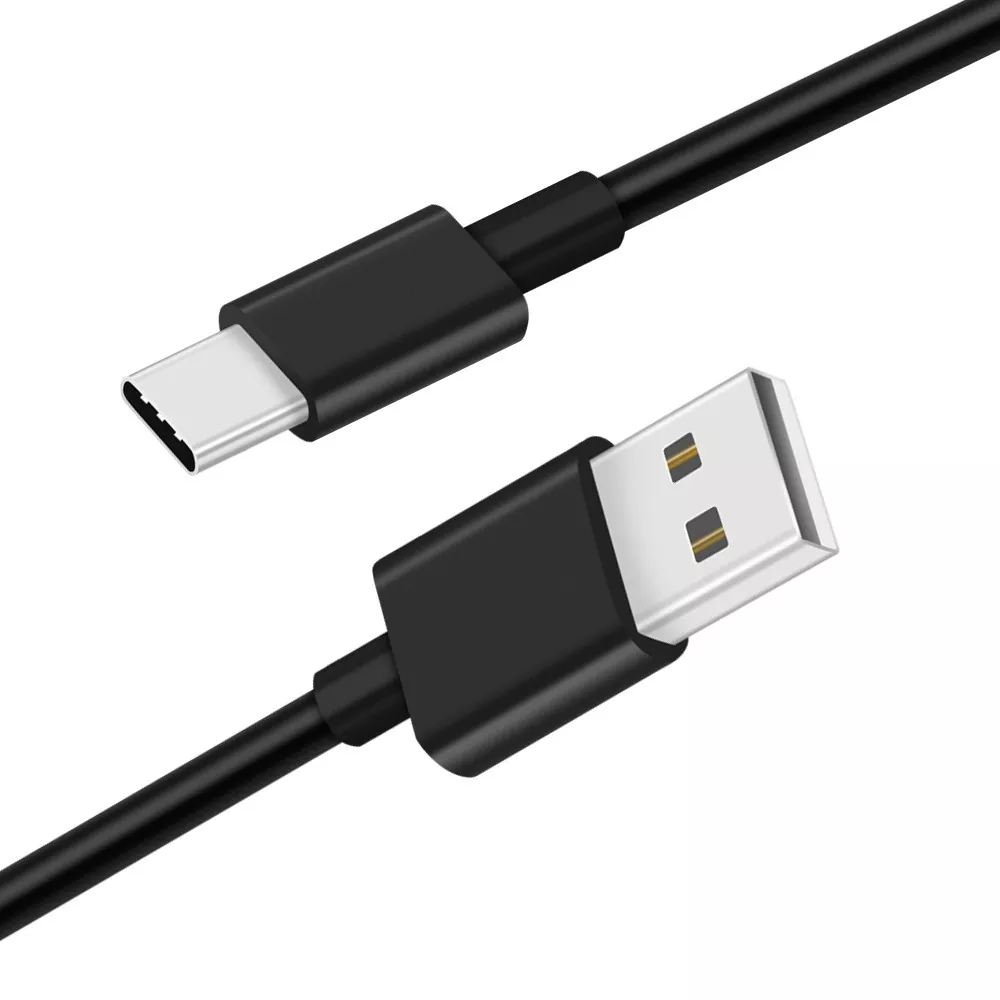

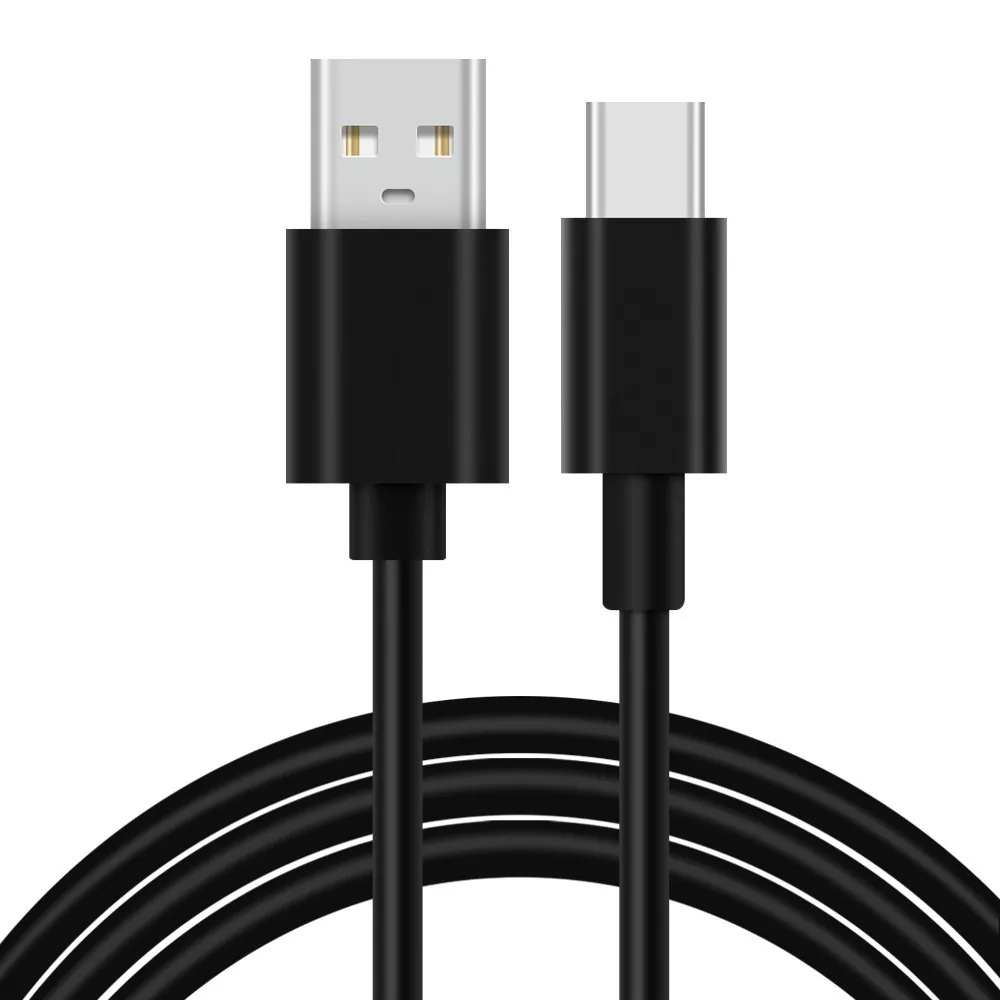

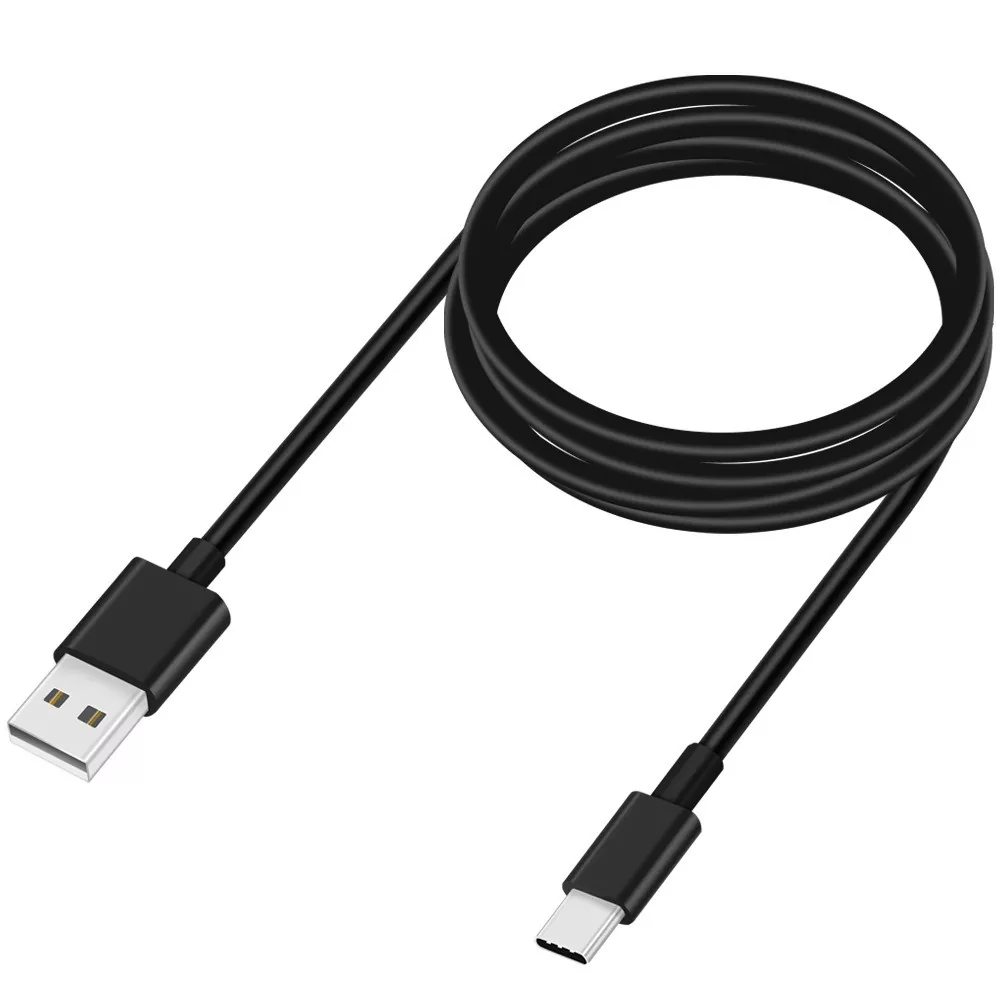

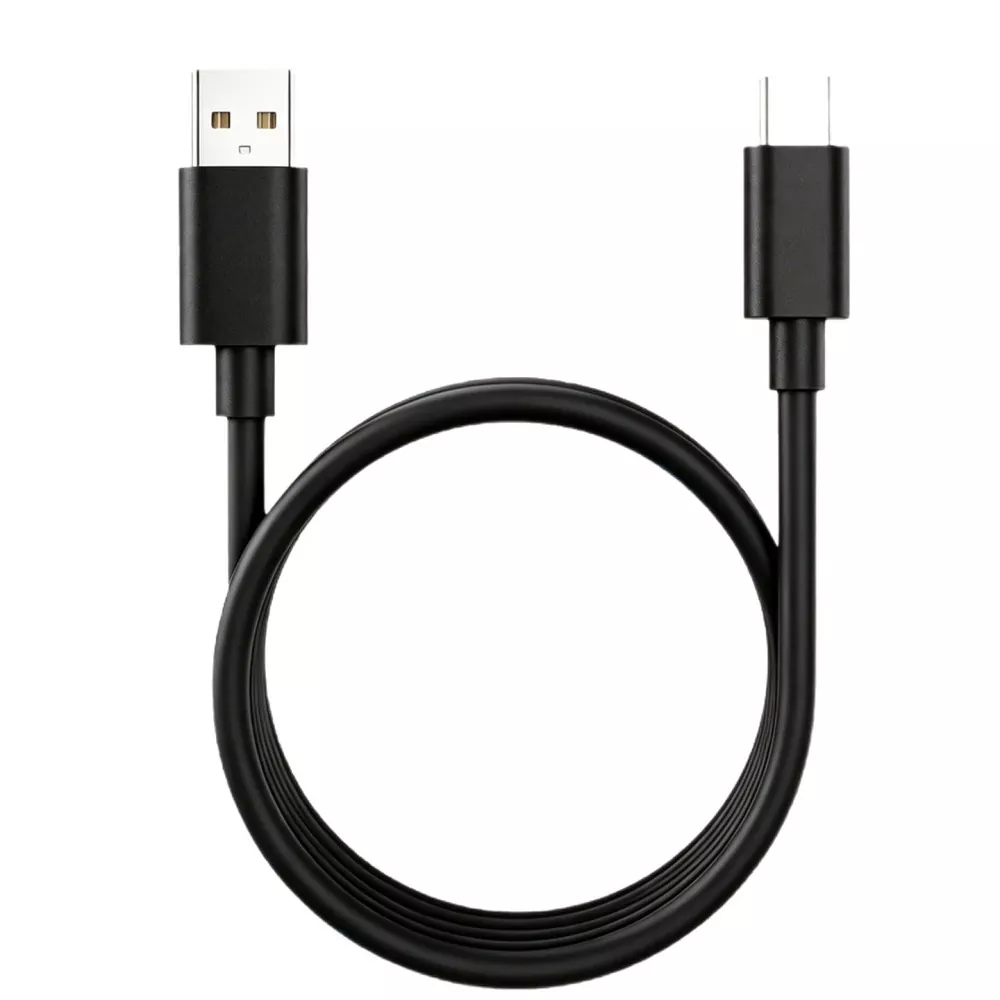

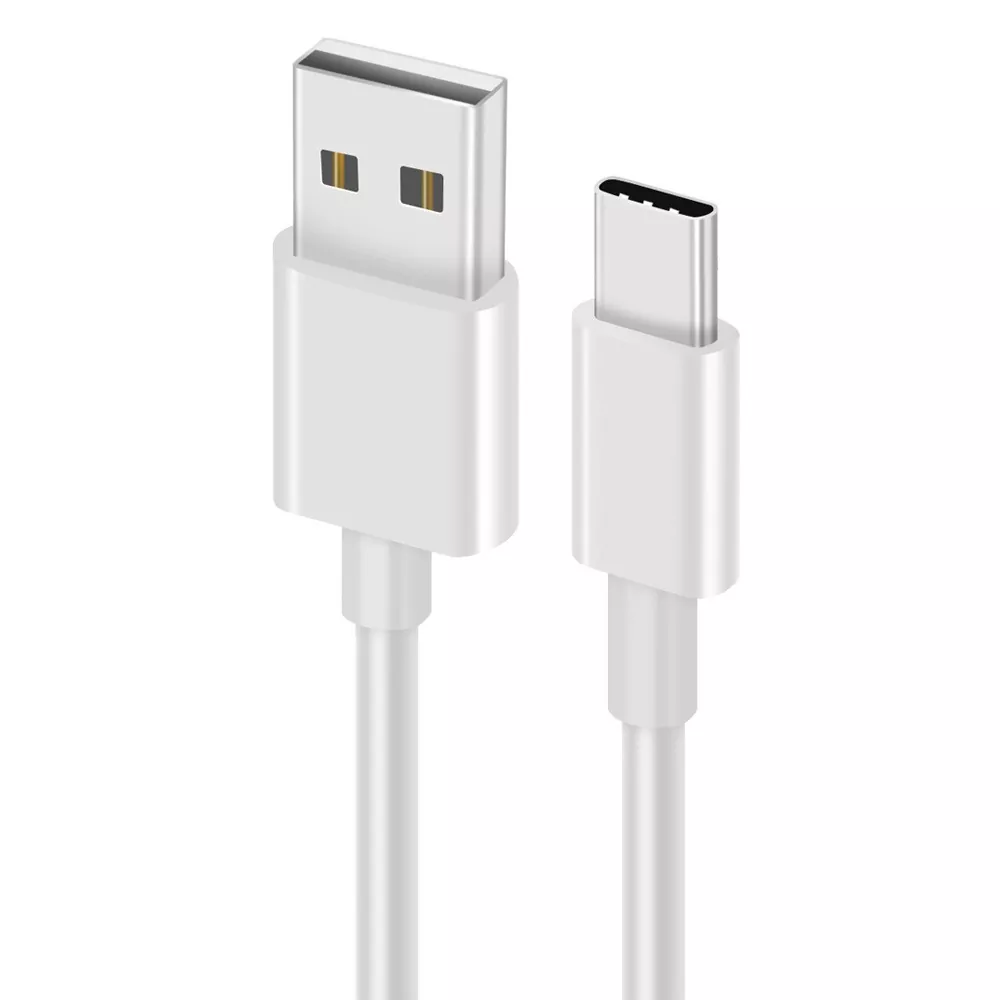

This USB 2 A to USB C Cable from TLD, a China USB cable manufacturer and factory, is built for compatible electronic equipment requiring a standard Type-A male to Type-C male connection. The cable uses a 56kΩ pull-up resistor, BC power conductors, a premium PVC jacket and foil plus braided shielding. Its 6ft (1.8m) length provides a practical option for connecting closely positioned devices. Factory direct from Guangdong, China, with OEM and wholesale available and free samples for qualified buyers.
|
Parameter |
Details |
|
Product Name |
USB 2 A to USB C Cable |
|
Connector Type |
USB Type-A Male to USB Type-C Male |
|
Length |
6 ft (1.8 m) standard; custom lengths 1ft to 10ft |
|
Data Transfer Rate |
480 Mbps (USB 2.0 High-Speed) |
|
Power Conductors |
Tinned copper or bare copper (VBUS and ground), supports up to 2.4A charging |
|
Data Conductors |
Tinned copper or bare copper (D+/D- twisted pair) |
|
Shielding |
Aluminium foil + braided tinned copper mesh |
|
Jacket |
Flexible PVC, matte black or white; custom colours available |
|
Connector Shell |
Nickel-plated brass with overmoulded strain relief |
|
Contact Plating |
Gold-flashed phosphor bronze |
|
USB-C Plug |
Reversible Type-C connector |
|
Pull-up Resistor |
56kΩ (Rp), compliant with USB-C specification |
|
Compatibility |
Android phones, iPhone 15/16/17 series, iPads (USB-C), MacBooks, Chromebooks, Windows laptops, Nintendo Switch, gaming controllers, power banks, Bluetooth speakers, headphones, e-readers, digital cameras, GPS devices, dash cams |
|
Charging |
Up to 2.4A, depending on charger and device |
|
Operating Temperature |
-10°C to 60°C |
|
Packaging |
Polybag, zip-lock bag, blister card, or custom retail box |
|
Certifications |
RoHS, REACH,UL |
|
MOQ |
500 units standard; flexible for custom projects |
|
Lead Time |
15-20 days for bulk orders; free samples in 5–7 days |
USB 2.0 provides 480Mbps data transfer. This is sufficient for charging phones, syncing photos and contacts, connecting keyboards and mice, and updating e-readers. A 1GB music library transfers in under 30 seconds; a 4GB video file takes about 2 minutes. This cable is positioned for wholesale, retail bundling and everyday use where USB 3.0 speed is not required.
The cable uses 28AWG power conductors and a 56kΩ pull-up resistor for USB-C current negotiation. It supports charging currents up to 2.4A, depending on the charger and device.
Test results:
Samsung Galaxy S24: full charge in about 1.5 hours with a 2.4A charger
iPhone 16: 0–60% in about 45 minutes
iPad Air (USB-C): full charge in about 3 hours
Nintendo Switch: charges at standard rate in sleep mode
Data transfer is supported during charging, so it can be used with Android Auto or Apple CarPlay in a car.
The USB-C plug is symmetrical and can be inserted in either orientation. The connector is tested to 5,000+ insertion and withdrawal cycles.
The cable connects to USB-C devices including:
Smartphones: Samsung Galaxy S and Z series, Google Pixel, OnePlus, Xiaomi, OPPO, vivo, Huawei, Motorola, Sony Xperia, Nokia
iPhones and iPads: iPhone 15/16/17 series, iPad Pro, iPad Air, iPad mini (USB-C models)
Laptops: MacBook Air/Pro, Google Chromebook, Dell XPS, HP Spectre, Lenovo Yoga, ASUS ZenBook
Gaming: Nintendo Switch, PlayStation VR2, Xbox controllers (USB-C models)
Peripherals: Bluetooth speakers, headphones, e-readers, GPS units, dash cams, action cameras, power banks, portable projectors
Accessories: USB-C hubs, docking stations, external drives (USB 2.0 compatible)
Overmoulded strain relief extends 25mm from each connector
Nickel-plated brass connector shells
Flexible PVC jacket resists kinking and abrasion
Gold-flashed contacts maintain low resistance across insertions
5,000+ insertion/withdrawal cycles confirmed by mechanical testing
The cable includes the required 56kΩ pull-up resistor. This supports safe current negotiation between charger and device. Low-cost cables sometimes omit this resistor, which can cause over-current conditions.
The cable works with USB-A ports including USB 3.0, 2.0 and 1.1. The connected device operates at the highest speed supported by both host and device.
Home and Office Charging Keep phones, tablets and e-readers charged at a desk, bedside or living room.
In-Car Use Connect a smartphone to Android Auto or Apple CarPlay for navigation, music and hands-free calls. Supports charging and data transfer at the same time.
Everyday Data Sync Transfer photos, contacts, documents and music between phone and computer.
Retail and E-commerce A high-volume accessory for electronics retailers, phone stores and online sellers. Every customer with a USB-C device can use a spare cable.
Corporate and Hot-desking Provide a standard charging and sync cable at shared workstations.
Travel and On-the-go Lightweight and flexible for charging at airports, hotels and cafes.
Education and Campus For students who need to charge and sync laptops, tablets and phones.
D+/D- Differential Pair The data lines are twisted 6–8 times per inch to reduce crosstalk and maintain signal integrity at 480Mbps.
56kΩ Pull-up Resistor Integrated into the USB-C plug. It signals to the charger that the cable is a standard USB-C cable, so the charger delivers the correct current profile.
28 AWG Power Conductors Tinned copper for VBUS and ground. Resistance is approximately 0.06Ω per foot. Voltage drop across 6ft stays below 0.2V at 2.4A.
Foil + Braid Shielding Aluminium foil provides 100% coverage against high-frequency interference. Braided tinned copper mesh adds mechanical strength and low-frequency EMI rejection.
100% Electrical Testing Each cable is tested for:
Continuity on all 4 pins (VBUS, D+, D-, GND)
Short-circuit isolation
Hi-Pot insulation (300V DC, >10MΩ)
Resistance (VBUS and GND)
Durability Test
Bending Swing Test
Salt Spray Test
Temperature and Humidity Test
Insertion and Extraction Test
Functional device handshake and charging verification
TLD operates under ISO 9001:2015 certified quality management.
|
Quality Checkpoint |
Method |
Acceptance Criteria |
|
Incoming material QC |
Visual + gauge + resistance |
Conductor AWG, shield coverage, plating |
|
Inline soldering inspection |
Automated optical inspection (AOI) |
100% defect-free joints |
|
100% electrical test |
Automated tester (ATE) |
Continuity, isolation, Hi-Pot |
|
Resistance test |
Micro-ohmmeter (shift sample) |
VBUS < 0.15Ω, GND < 0.15Ω |
|
Insertion/withdrawal force |
Force gauge (shift sample) |
0.5–2.0 kgf (USB-IF spec) |
|
Bend endurance |
Flex tester (shift sample) |
8,000 cycles @ 180° – no electrical failure |
|
Real-device validation |
Daily – charge & sync phones, tablets |
Stable charging, reliable data sync |
|
Visual inspection |
100% units |
No scratches, misalignment or defects |
Founded in 2008, TLD is a 12,000 m² ISO 9001 certified manufacturer, supplier and exporter with over 200 employees and 15 in-house engineers. The Dongguan facility uses automated production lines, giving control over cost, quality and delivery.
TLD supplies global brands including ZTE, Skyworth and Hisense, as well as wholesale distributors and e-commerce sellers in 55 countries.
Partner benefits:
Factory direct pricing for wholesale and bulk orders
Custom lengths (1ft–10ft), colours, connector branding and retail packaging
Private labelling, custom blister cards and retail boxes
Free samples for qualified buyers within 5–7 days
Standard models in stock for rapid dispatch
98.5% on-time delivery over 24 months
Dedicated account managers and technical support
GlobalTrade Distribution (UAE) “As a wholesaler serving the Middle East and Africa, we order 20,000 units quarterly. The cables are consistently good, packaging is clean, and delivery is on time every time. TLD understands our business.”
Q1: Why choose USB 2.0 over USB 3.0 for this cable? A: USB 2.0 at 480Mbps is sufficient for charging phones, syncing photos and music, using keyboards and mice, and connecting to Android Auto or Apple CarPlay. It costs less than USB 3.0, which makes it suitable for retail, bundling and wholesale. USB 3.0 cables are also available from TLD.
Q2: What is the maximum charging speed? A: Up to 2.4A, depending on charger and device. It supports standard USB charging protocols (BC 1.2 and USB-C default power profiles). It does not support Quick Charge, USB PD or proprietary fast-charging protocols that require special controllers.
Q3: Does this cable work with iPhone 15/16/17? A: Yes. iPhones from the 15 series use USB-C ports. This cable connects them to standard USB-A chargers, computers and car ports. It supports data sync and charging at standard rates.
Q4: Will this cable charge a laptop such as MacBook Air? A: Yes, at standard USB power levels (up to 2.4A / 12W). This is slower than a USB-C PD charger. It is suitable for topping up the battery over a longer period or maintaining charge during light use. For full laptop charging speed, use a USB-C to USB-C PD cable.
Q5: Can I get custom packaging with my logo? A: Yes. TLD offers private-label and OEM services, including laser engraving on the connector shell, custom-colour jacket, printed branding, blister cards and retail boxes.
Q6: Do you offer free samples? A: Yes. Free samples are available to qualified businesses. You only pay for shipping.
Q7: What lengths do you stock? A: Standard stock is 3ft and 6ft. Custom lengths from 1ft to 10ft are available for bulk orders.
TLD also offers accessories and replacement cables for Starlink systems.
Starlink Gen 2 / Gen 3 Dish Power Cable – 75ft Heavy-Duty Weatherproof Replacement power cable for Starlink rectangular dish (Gen 2) and Standard Actuated dish. Pure copper conductors, foil + braid shielding, UV-resistant outdoor jacket. Available in 75ft and 150ft. Suitable for RV installations, remote cabins and marine applications.
Starlink Ethernet Adapter Cable Kit Plug-and-play adapter that adds a Gigabit Ethernet port to Starlink Gen 2 systems. Includes a 6ft shielded patch cable. For wired connections to routers, switches or enterprise networks.
Starlink Mount Bracket & Ground Pole Kit Mounting solution for Starlink dishes. Includes galvanised steel ground pole, roof mount adapter and hardware. Cable management channels protect the Starlink cable from UV damage and rodent chew.
Starlink Router USB-C Power & Data Adapter Cable 3ft cable that connects Starlink routers (Gen 2/3) to USB-C power banks or portable power stations. Reinforced strain relief and high-flex conductors. For off-grid camping, disaster relief and mobile journalism.
For samples, OEM requirements, custom packaging or wholesale orders, contact TLD to confirm configuration and quotation.
